Novice Ranger I Transmitter

Back to main ham radio page

Here's a Ranger I that someone converted for novice use - All the modulator parts were removed. Final  was changed to a 2E26 and runs off the LV supply. Mostly interesting because they did such a fanatical  job of making sure no single bit of AF circuitry was left in place.

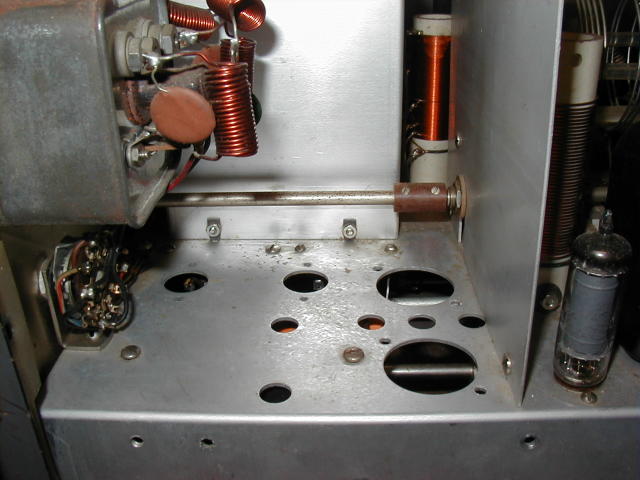

Modulator area
Modulator/Speech Amp area

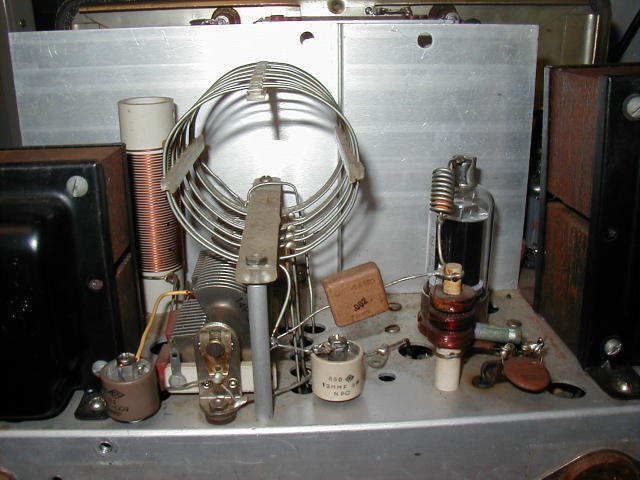

Final with 2E26 and extra loading caps.

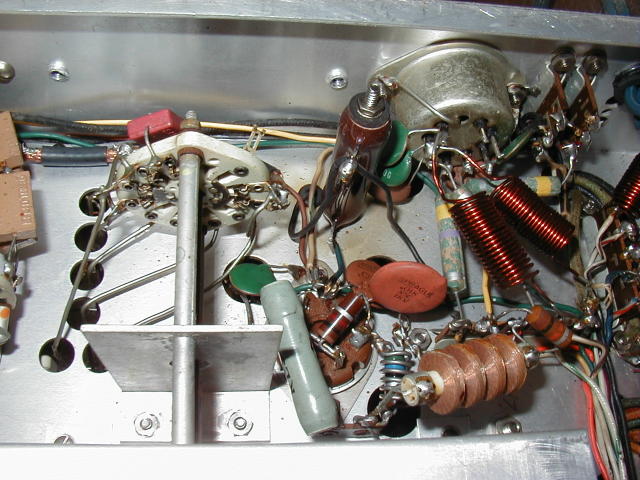

Final with extra cathode resistor

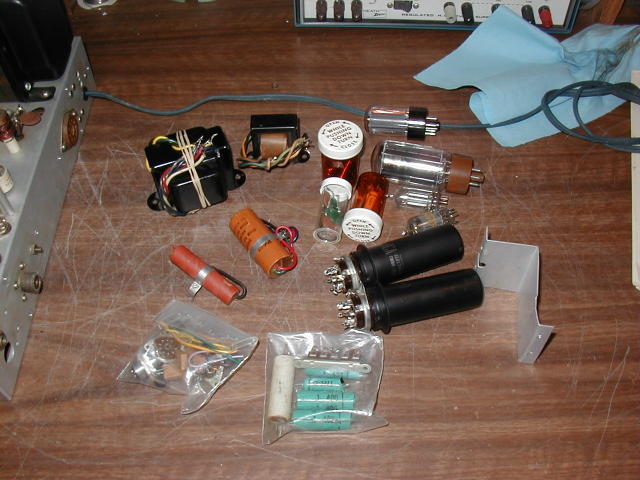

Parts that came along with it - tubes, mod xfmr, AF driver xfmr, etc.
