Vintage Ham Radio Speakers

This is an attempt to list the "matching" speaker for various vintage ham and communications receivers.
Often a receiver was advertised with several different speakers over its lifetime. And most hams used
homebrew speakers rather than the expensive matching one anyway!

This is definitely still a work in progress. I need more info!
Send corrections, links, and updates to nick@virhistory.com



Model


Color Features Speaker Dates Matching Receivers

Collins

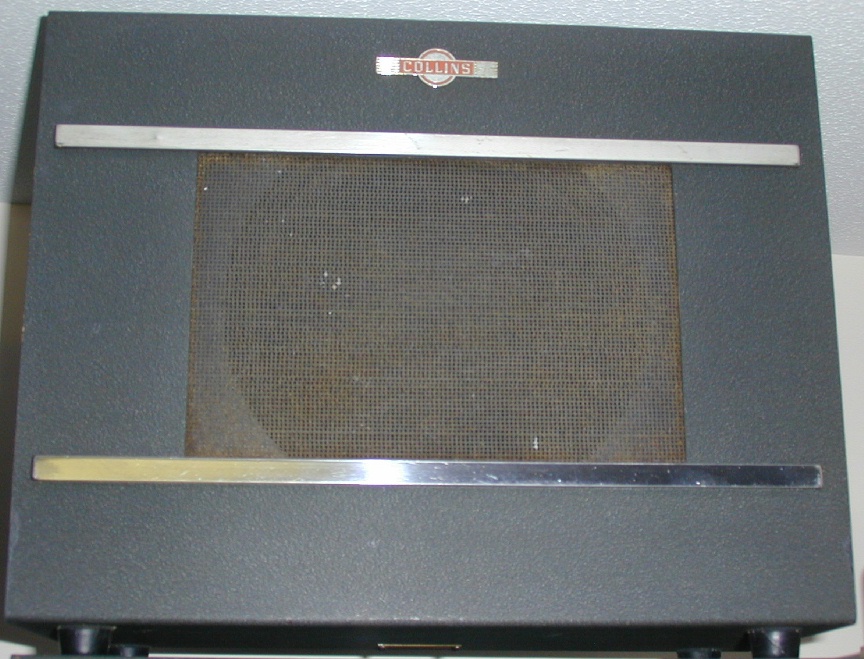

270G-1 col-270g1.jpg (220514 bytes) St. James gray (black) stainless bars, winged emblem 13"x10.5"x6.5" 8" ~46 75A-1
51J
51J-2
51J-3?
51J-4?
LS-175/U same as 270G-1 same as 270G-1 same as 270G-1 same as 270G-1 ~50 AN/URR-23
R-381/URR (51J)
R-381A/URR (51J-2)

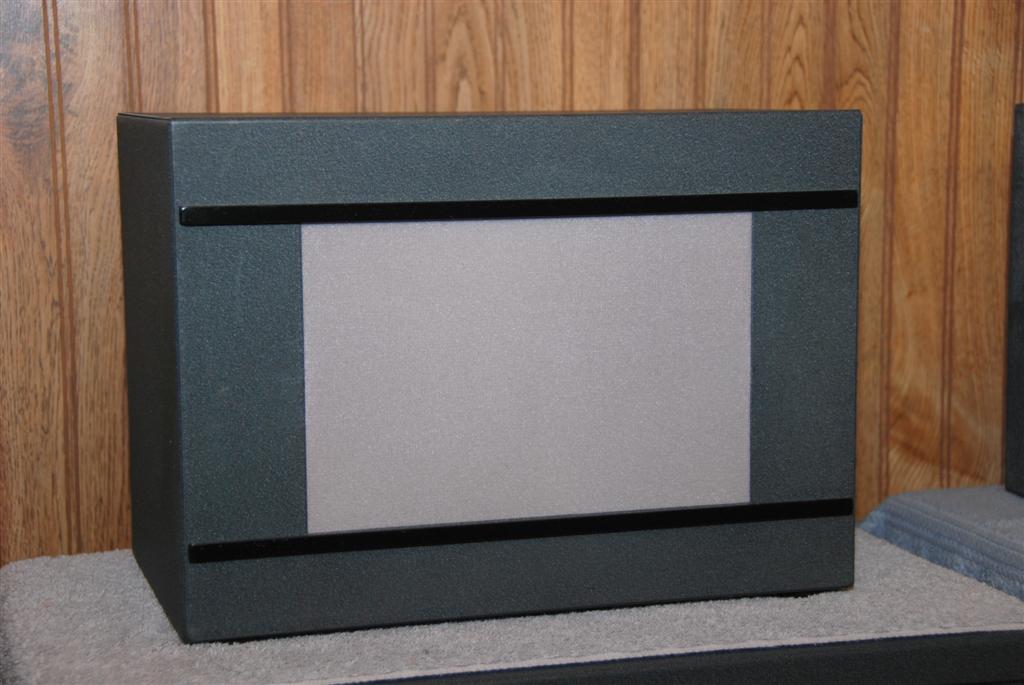

270G-2 270g-2-spkr.jpg (84226 bytes) St. James gray (black)

photo thanks to Joe KB9R

black bars, no emblems, no rack mount bracket holes, with sound deadening liner
15"x11"x9"
10"
~52 75A-2
75A-3
51J-3?
51J-4?

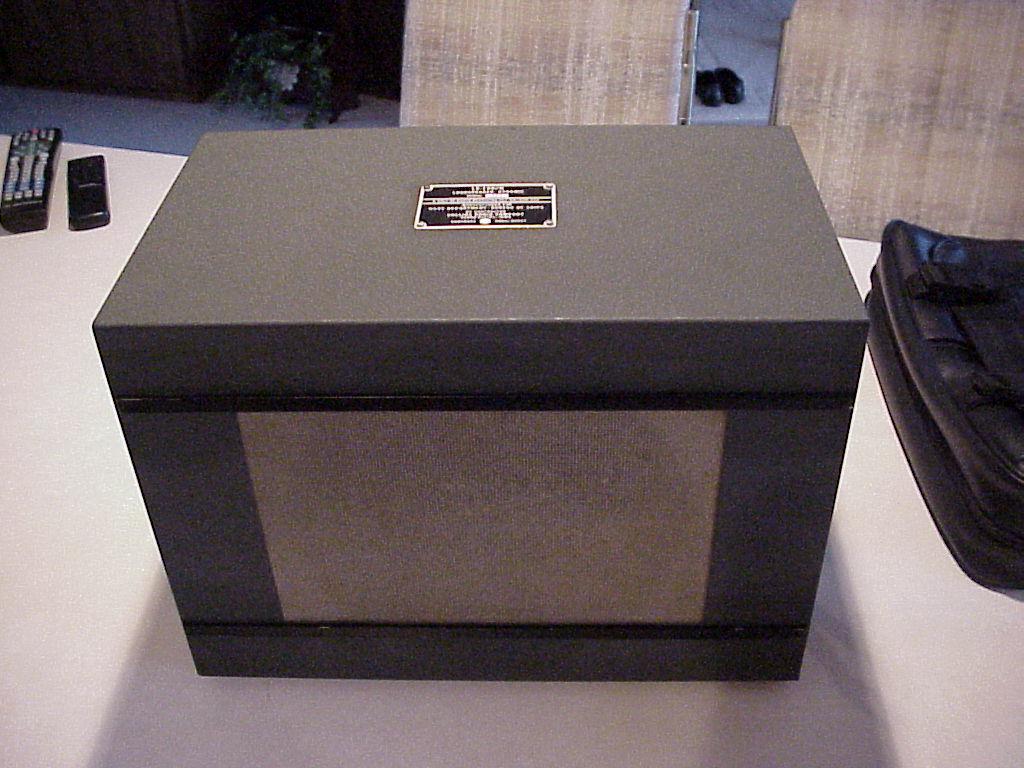

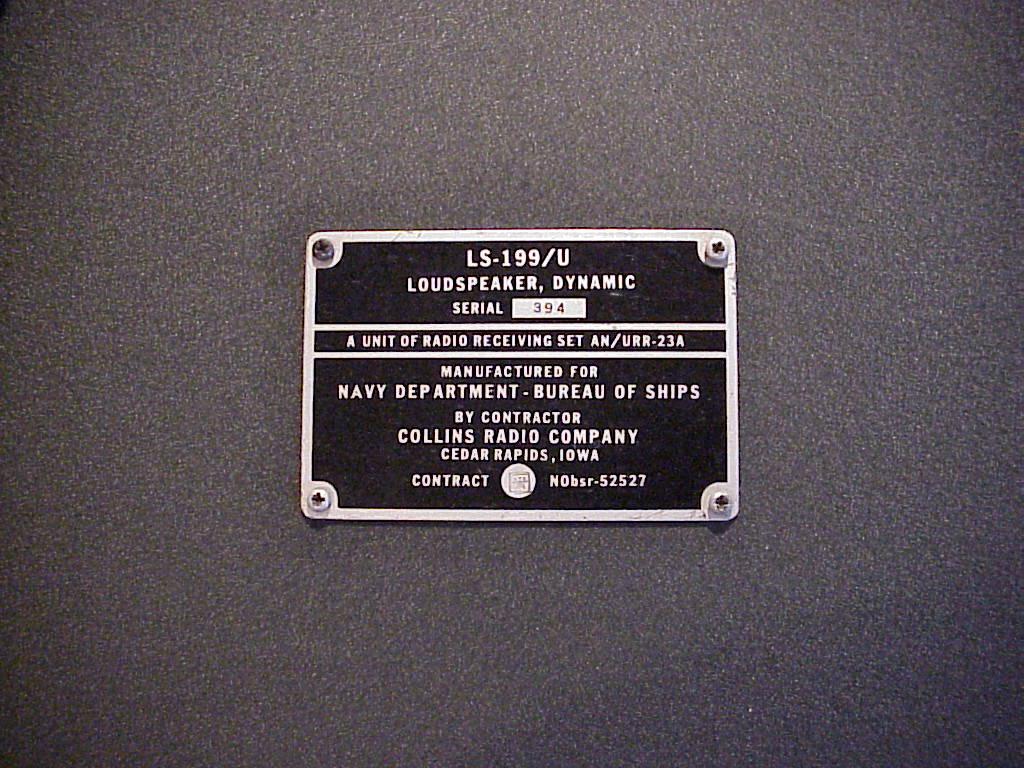

LS-199/U ls199-1412-01.jpg (126464 bytes) ls199-1412-02.jpg (163572 bytes) US Navy ID tag on top
same as 270G-2
black bars, no emblems,
no rack mount bracket holes,
with sound deadening liner
15"x11"x9"
10"

photos thanks to Joe KB9R

~52 AN/URR-23A
R-388/URR (51J-3)

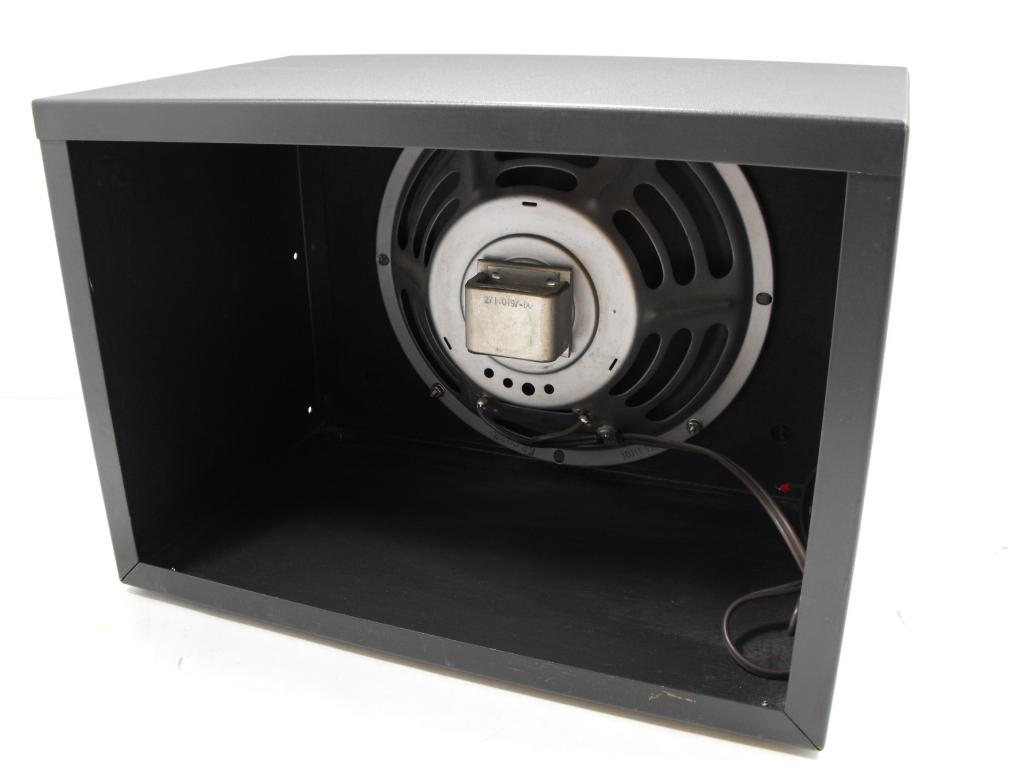

270G-3 col-270g3-1412-01.jpg (57467 bytes) St. James gray (black)
black bars, no emblems,
no sound deadening,
with 3 rack mount bracket holes on each side.
15"x11"x9"
10"
~55 51J-4,
75A-4

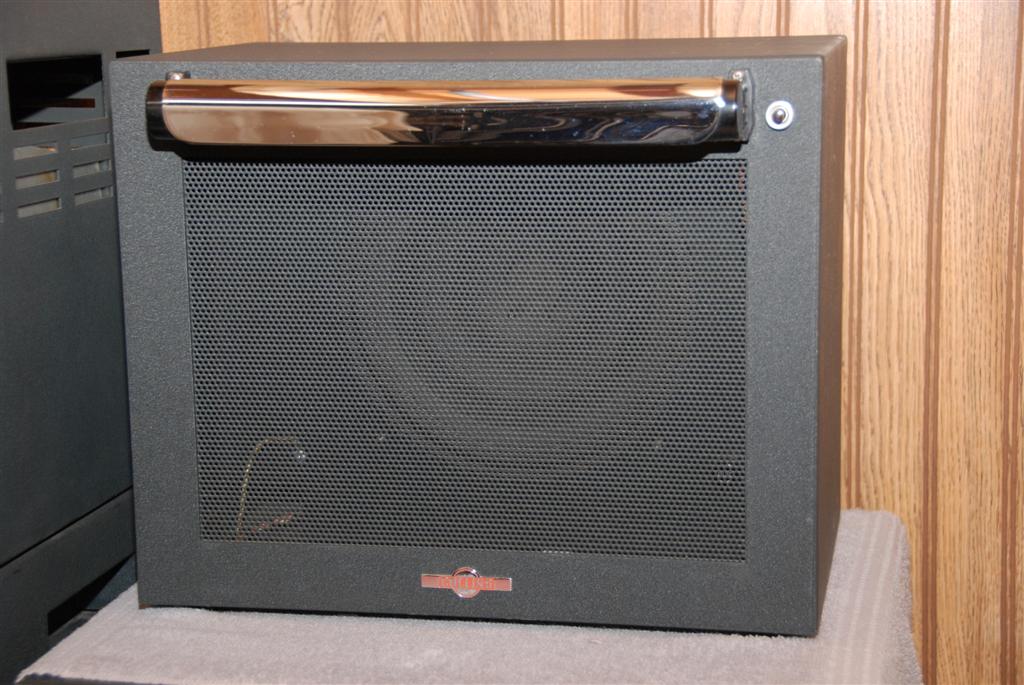

312A-1 312A-1-spkr.jpg (127277 bytes) St. James gray (black)

photo thanks to Joe KB9R

with lamp,
winged emblem

15" W x 12-1/4" H x 9-3/4" D (11-1/2" D with lamp)

10" ~55 75A-4

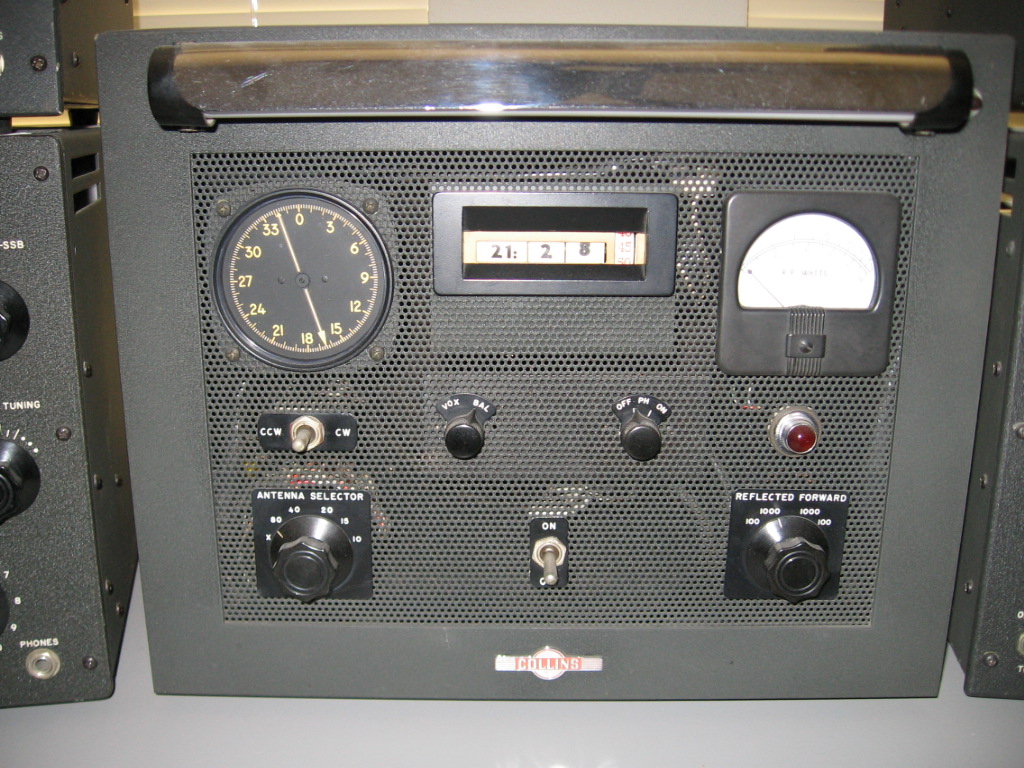

312A-2 312A-2.JPG (308183 bytes) St. James gray (black)

photo thanks to Brian  WA5UEK

with lamp, clock, dir. indicator, wattmeter, phone patch 10" ~55 75A-4
312B-3 collins-312b3-01.jpg (19920 bytes) gray  spkr only 5" x 7" ? S-line
312B-4 collins-312b4-01.jpg (35679 bytes) gray with phone patch, wattmeter 5" x 7" ? S-line


Drake

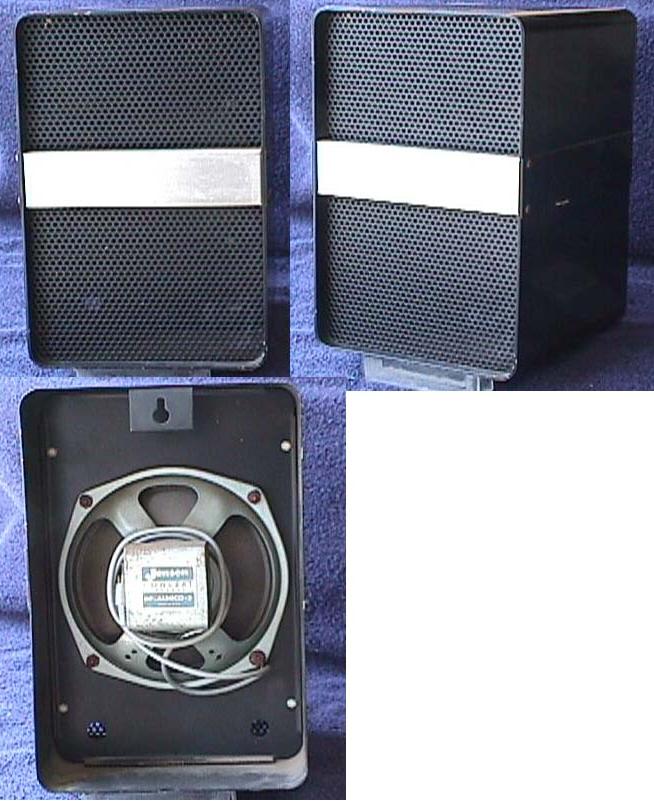

1-AS DRAKE1aSPKR.JPG (84876 bytes) black matches 1-A in size ? ? 57? 1-A

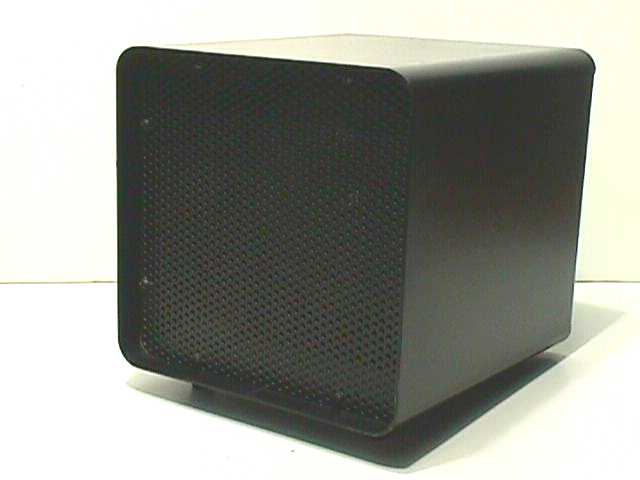

2-AS DRAKE-2.JPG (18387 bytes) black rounded edges 8" 60? 2-A, 2-B

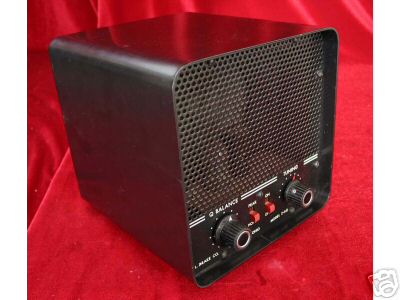

2-AQ drake-2aq-01.jpg (23301 bytes) black rounded edges, Q-mult   60? 2-A

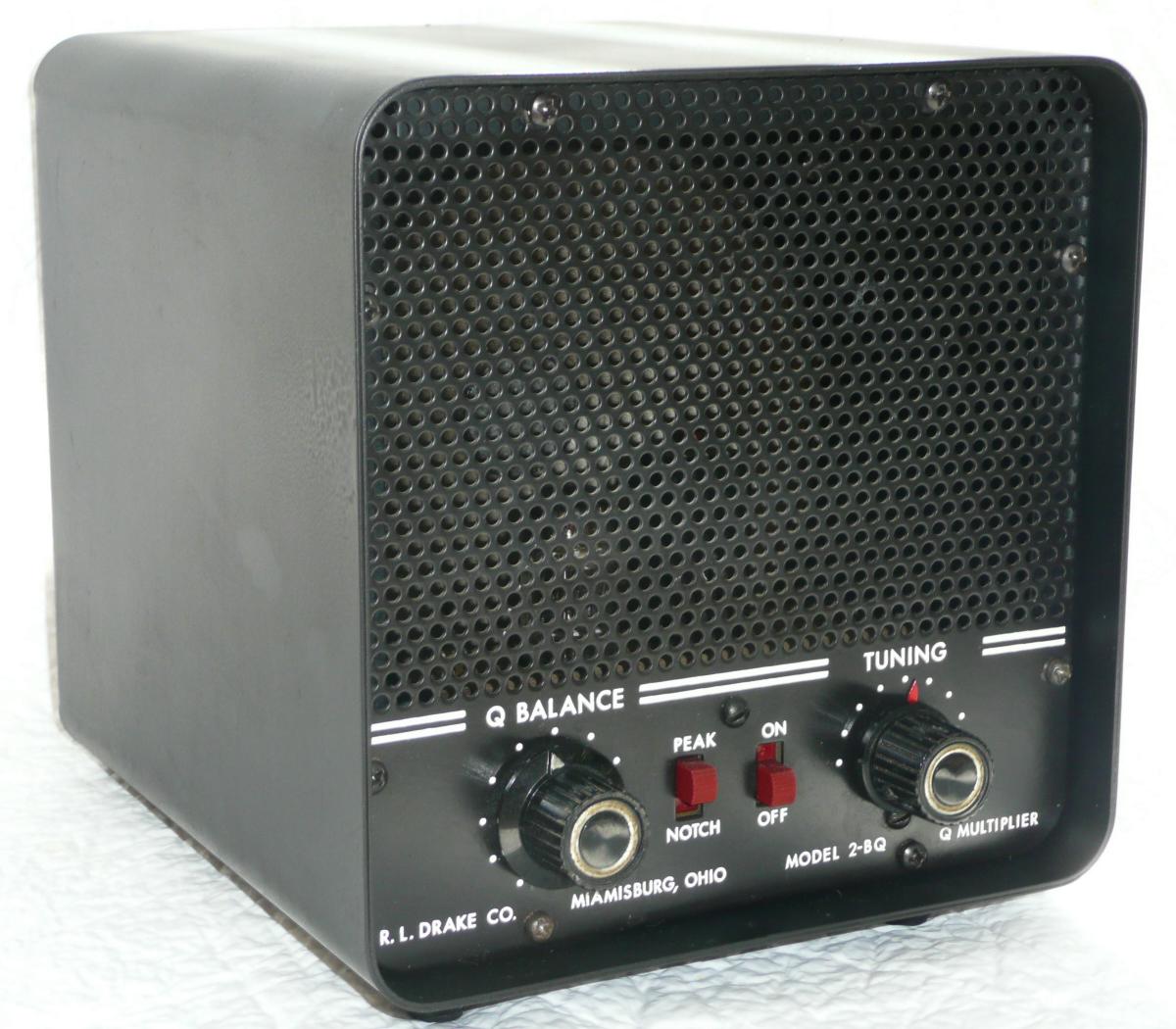

2-BQ drake2bq-01.JPG (172924 bytes)
photo thanks to K2RP
black rounded edges, Q mult.   62? 2-B
2-CS need photo black + gray square edges   67? 2-C
2-CQ need photo black + gray sq. edges, Q-mult   67? 2-C
MS-3 need photo black + gray square edges, space for AC-3 power supply   63? TR-3, also early R-4/T-4X and TR-4
MS-4 drake-ms4.jpg (25982 bytes) black + gray square edges, space for AC-4 power supply   64? all 4-line radios
MC-4 need photo black + gray spkr/wattmeter   70??? mounts on TR-4 mobile
MS-7 need photo black     79? TR-7/R-7
MS-8 need photo black (ugly!)     90 R-8

Lafayette

HE-11 p3310012.jpg (53245 bytes)   gray     KT-200, HE-10

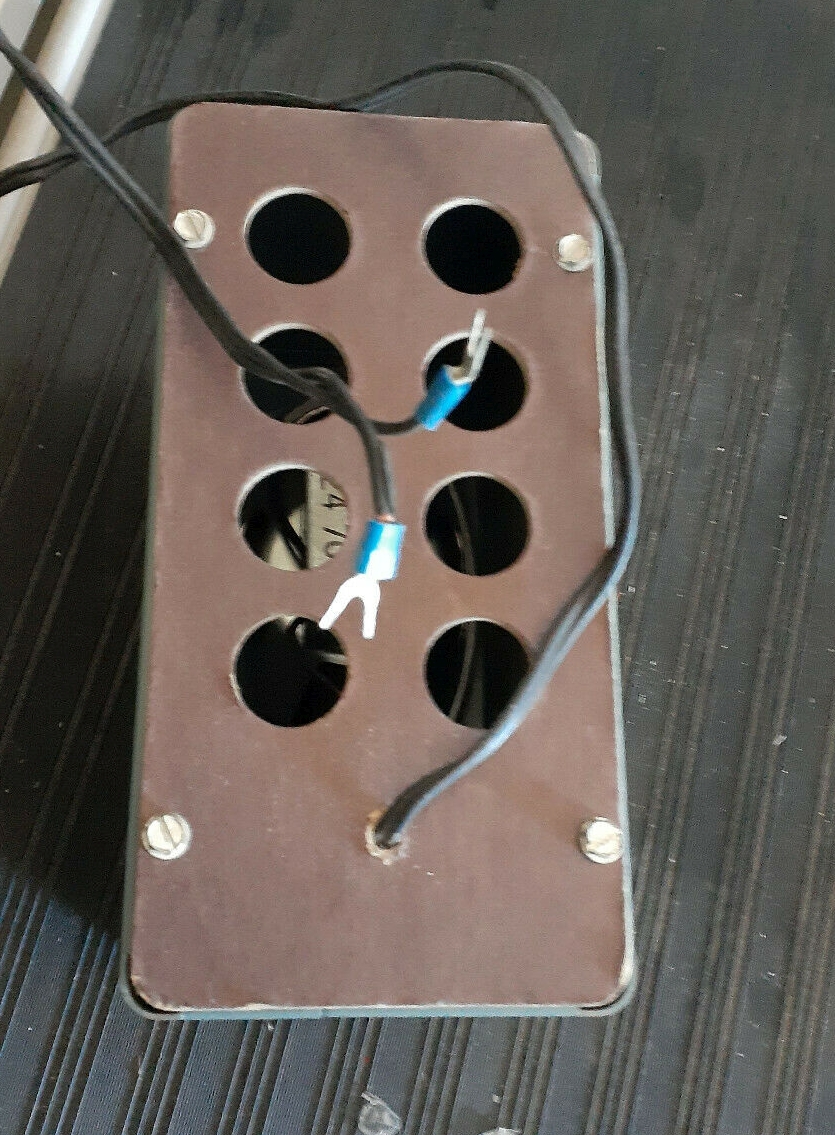

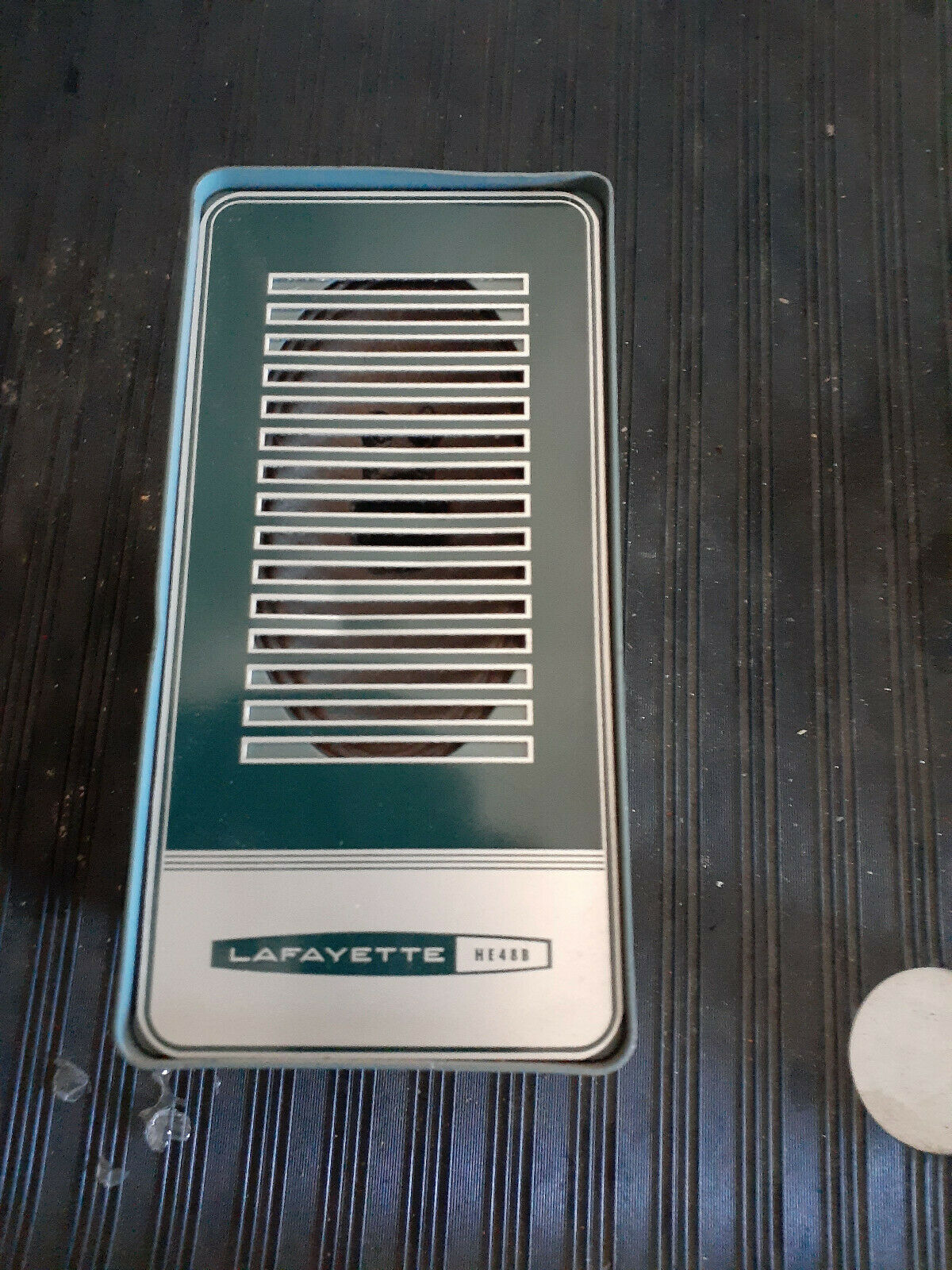

HE-48 p3300006.jpg (63868 bytes)   gray wrinkle     KT-320, HE-30

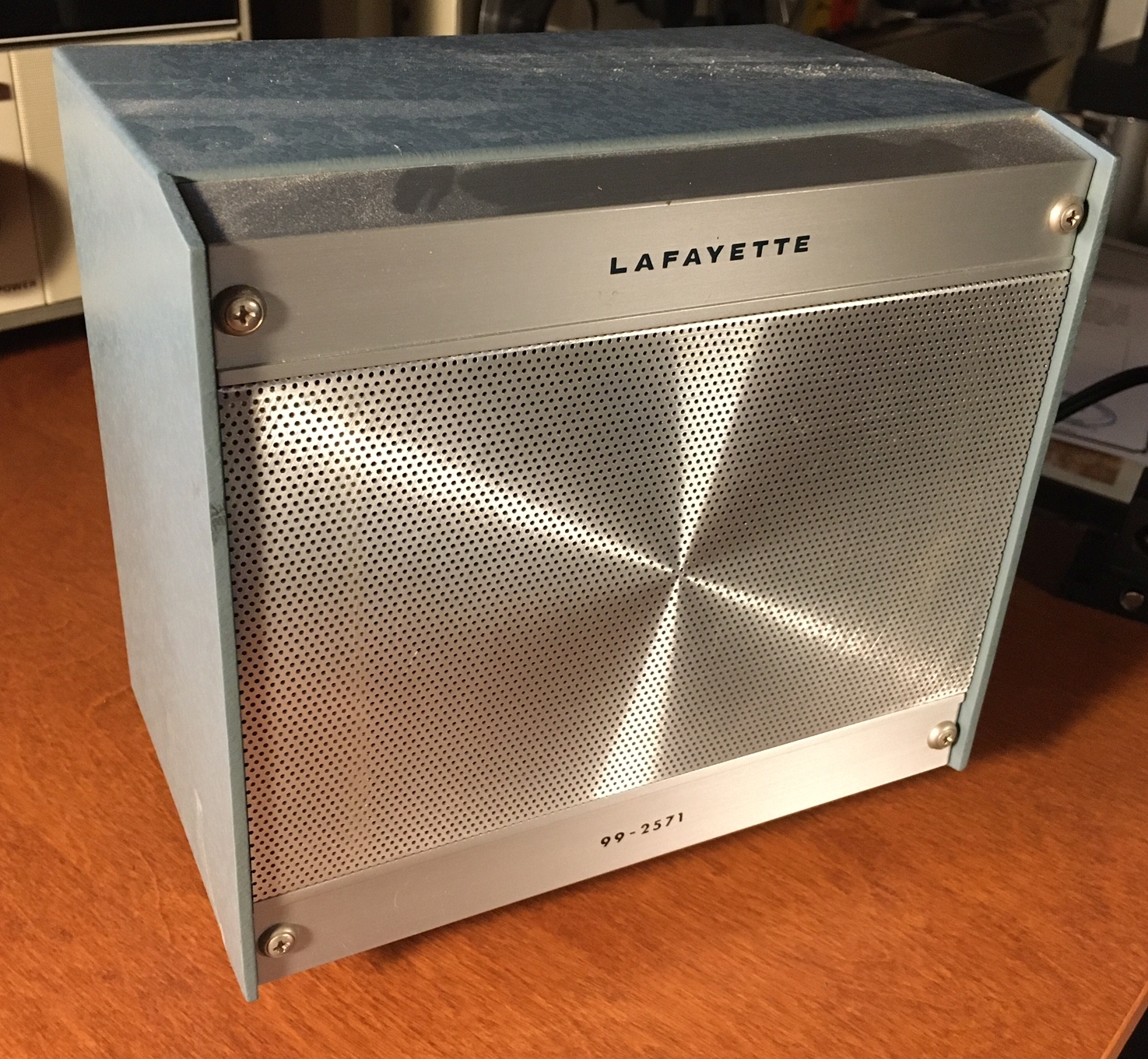

99-2569 p3300009.jpg (65614 bytes)   blue-green     KT-340, HA-230

Hallicrafters

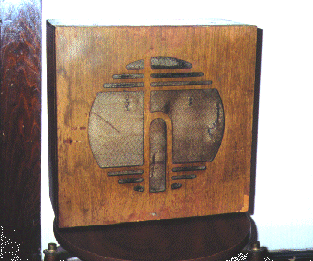

PM-12M halli_wood.gif (54997 bytes) Wood (Mahogany) wooden "h" grille -  12"  -  -
PM-12S need photo Steel - otherwise same as PM-12M - 12" - -

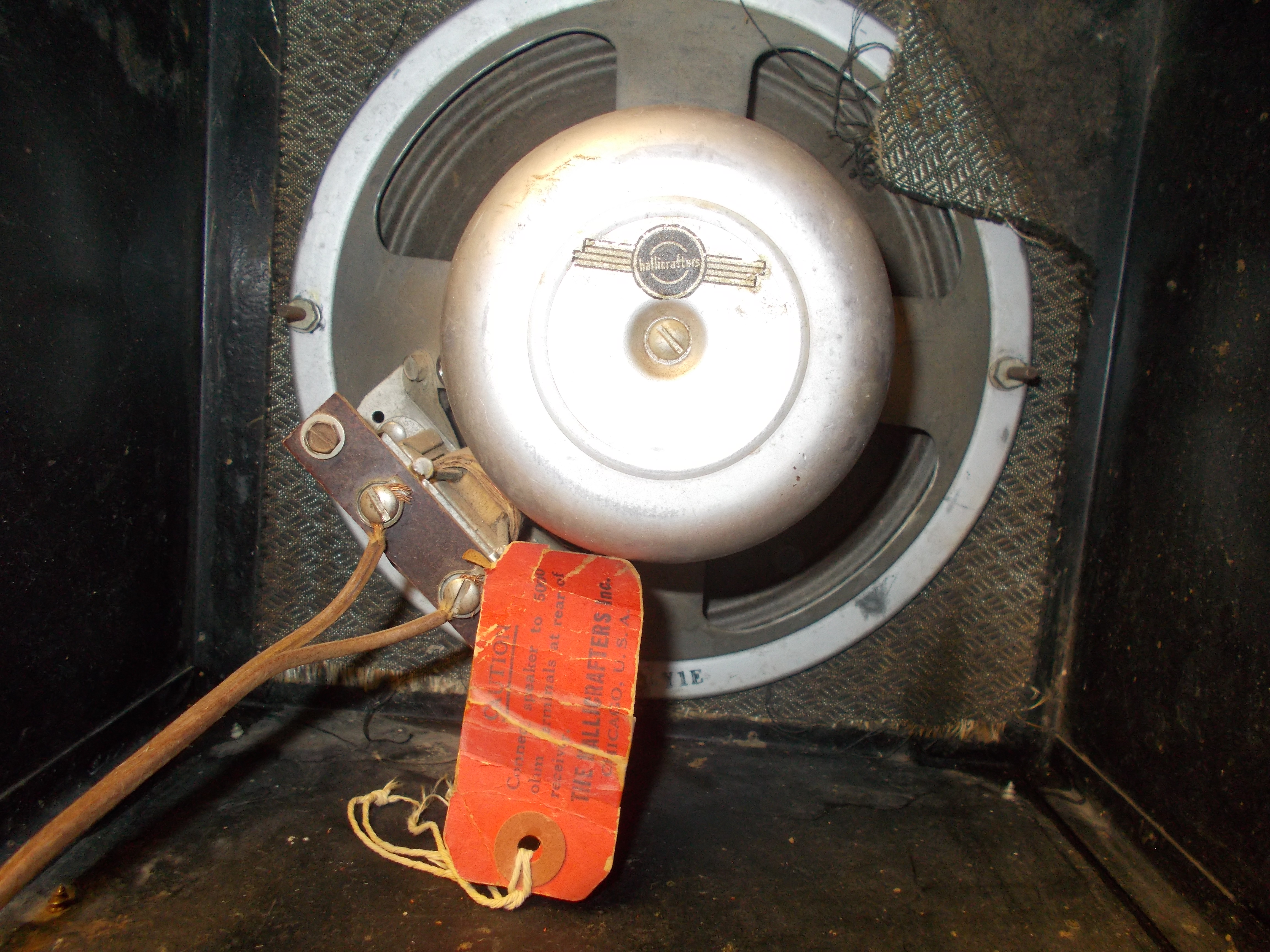

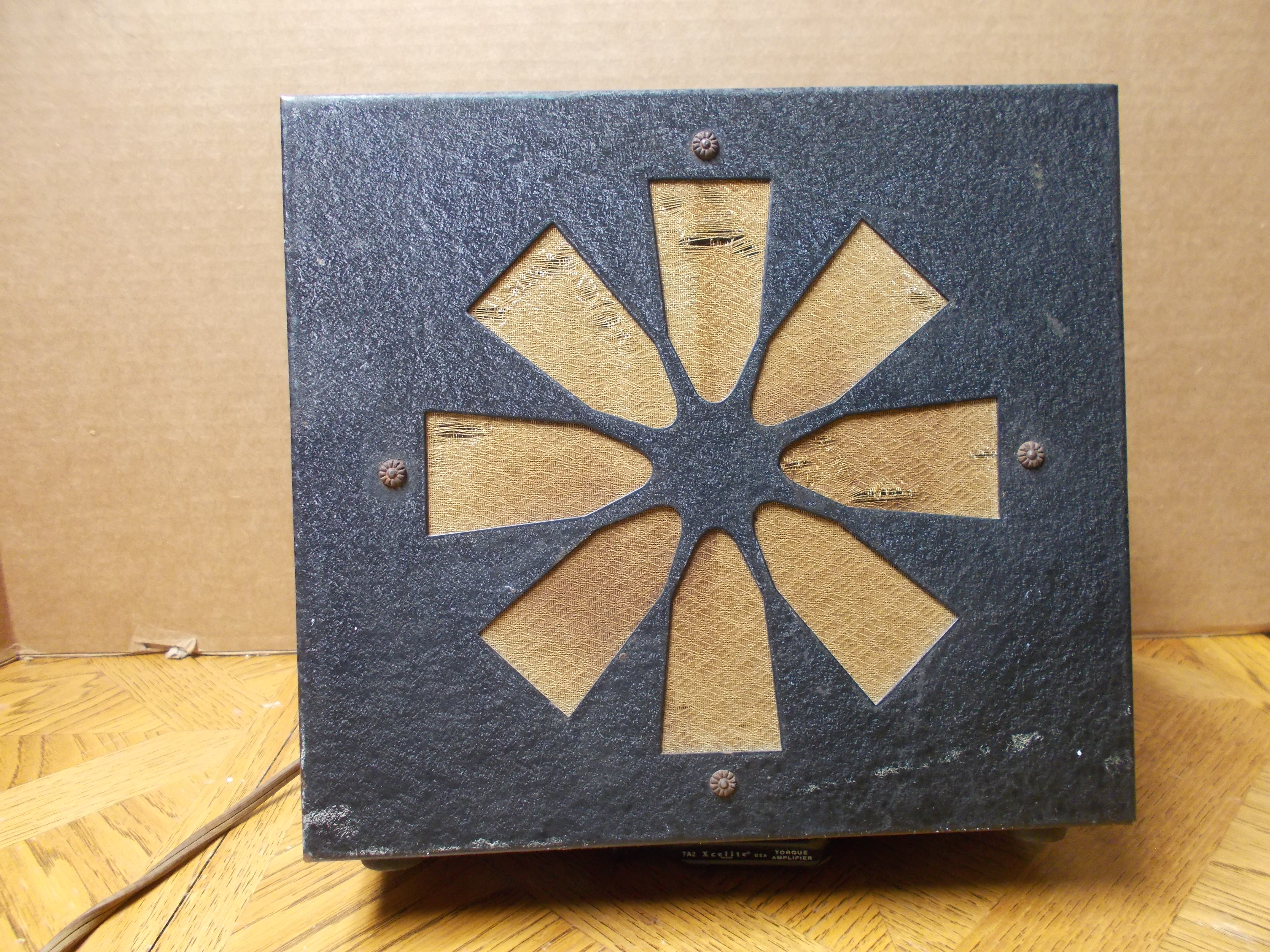

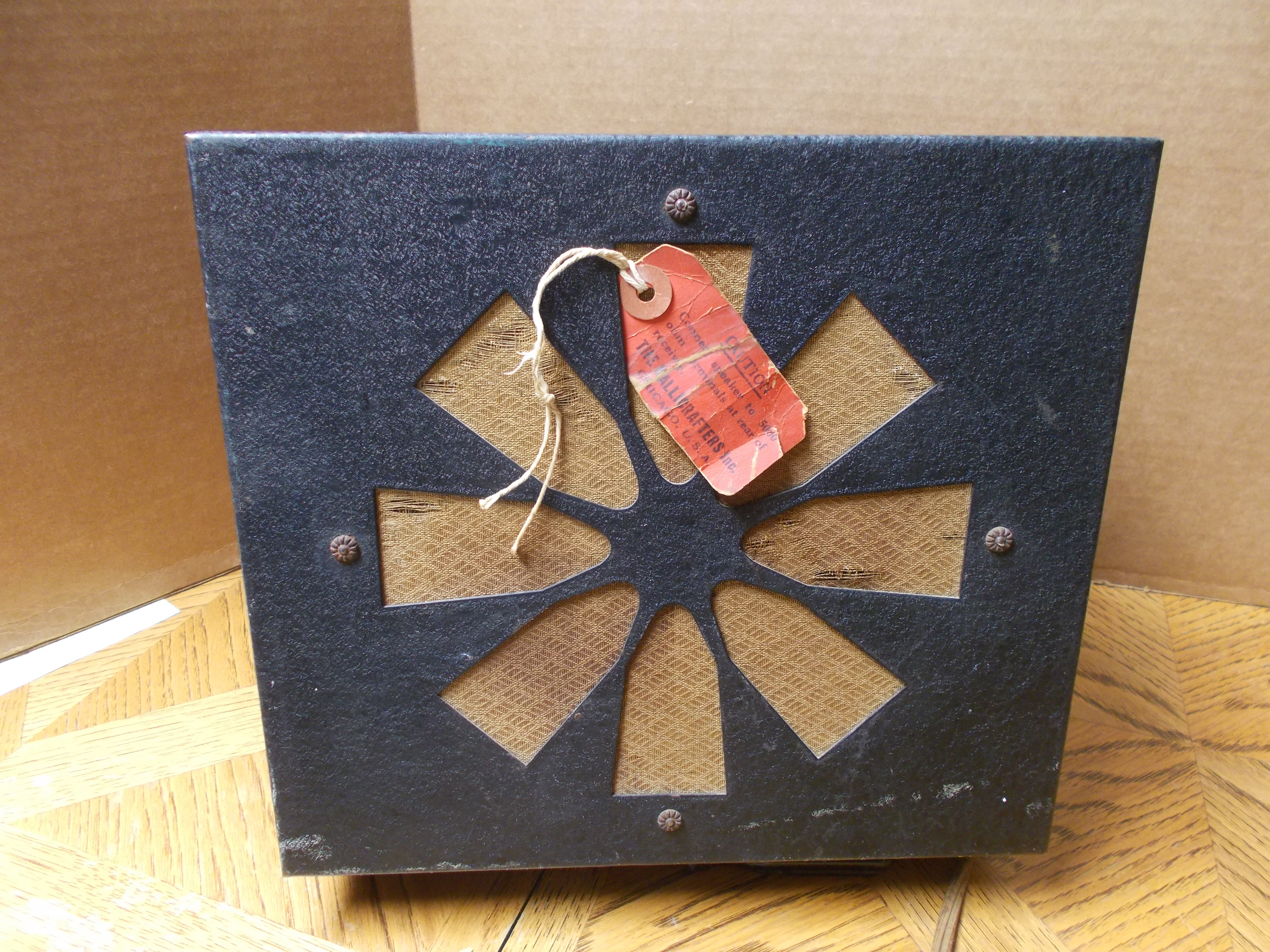

?? need photo Black Smaller than R-42, logo in upper right hand corner  -  - early 'winged' SX-11
PM-?? need photo Black size of R-42, Wood grill, 'h' in center of grill, chrome side trim  -  - SX-16, SX-18
PM-23
tnx KB8TAD

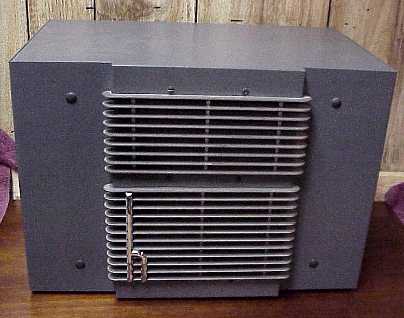

halli-pm23.jpg (17972 bytes) Gray size of R-42, chrome grill, chrome 'h'  - SX-28, SX-23,
SX-24, SX-25

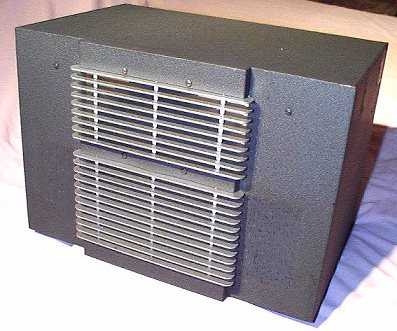

PM-23 variant halli-pm23-v.jpg (73275 bytes) Gray size of R-42, chrome grill, No 'h'  -  - SX-28, SX-23,
SX-24, SX-25
R-8T halli-r8.jpg (23366 bytes) Gray 8" version of R-12T 8"  - SX-28

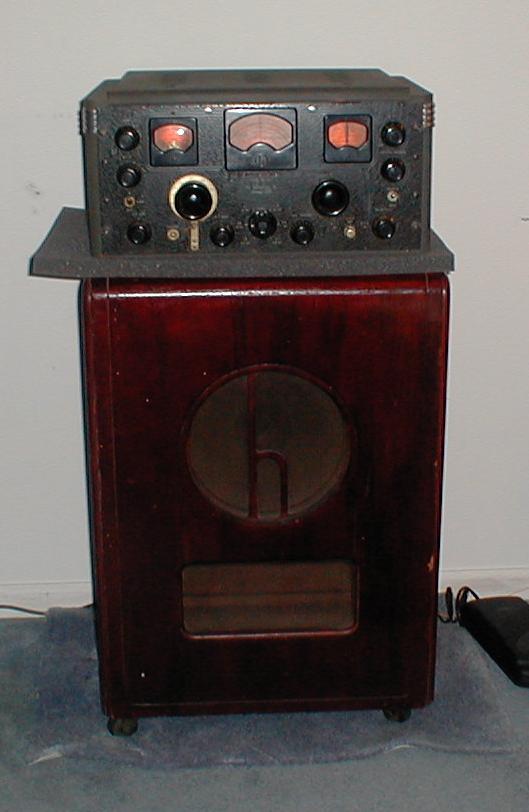

R-12 sx28a-R12Speaker.JPG (40822 bytes) Wood wood cabinet, bass reflex floor cabinet

construction plans

12"  - SX-28 on top

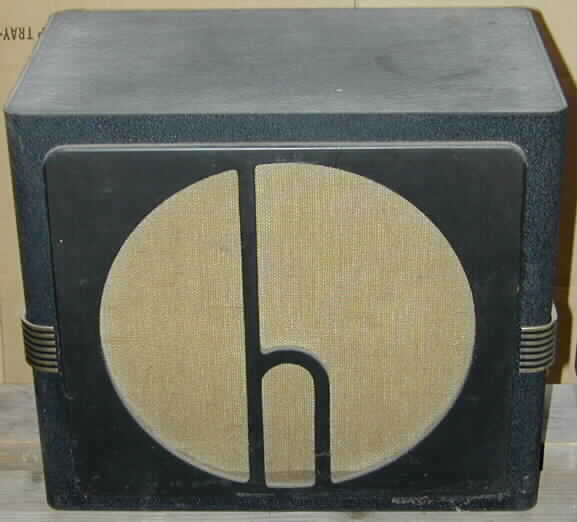

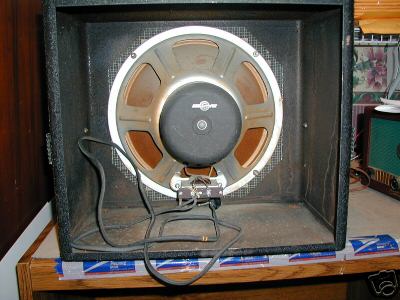

R-12T halli-r8.jpg (23366 bytes) Black wrinkle metal wrinkle-finish cabinet
 -  - tnx to K2WH for photo ID

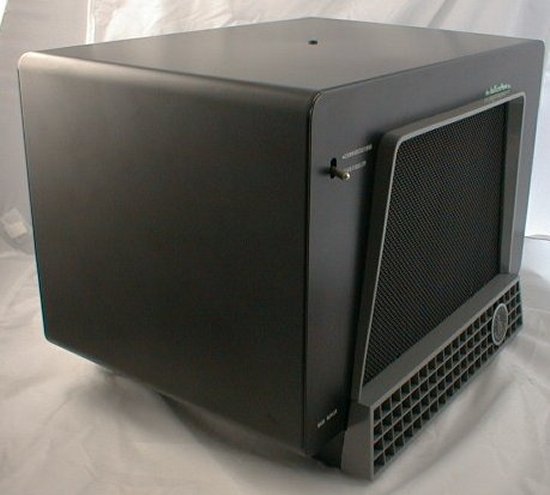

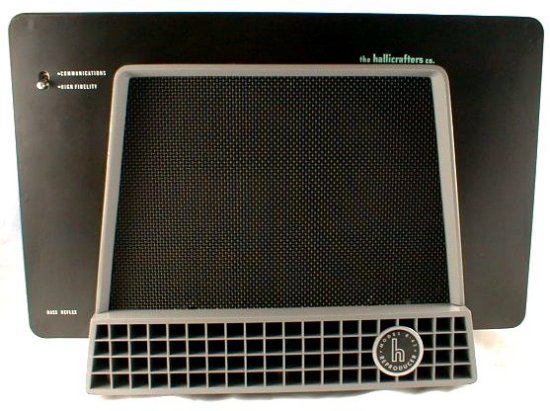

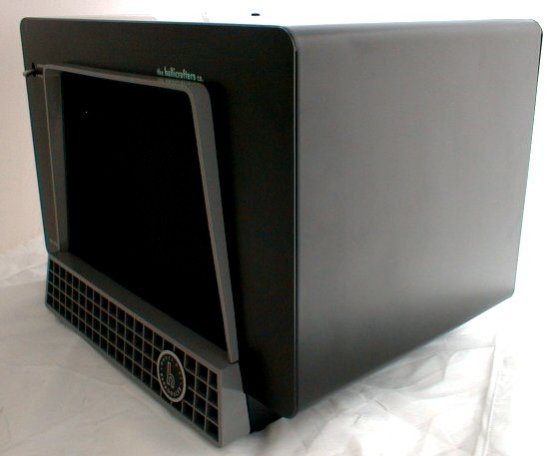

R-42 r42-101.jpg (50459 bytes)
photo thanks to Bob W0YVA
Black
bass reflex
10"

500 ohm



45-50? SX-42

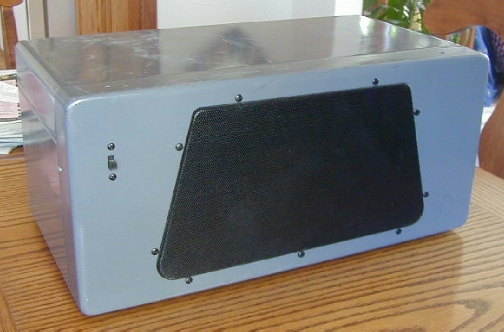

R-43 halli-r43.jpg (121095 bytes) gray size of SX-100  500 ohm??  -  -

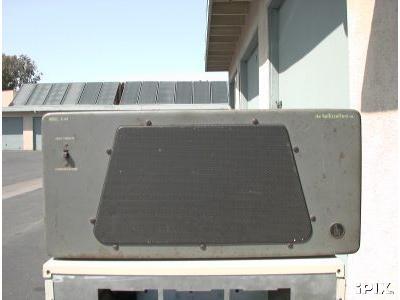

R-44 halli-r44.jpg (14273 bytes) med. gray size of SX-100  500 ohm??  - SX-43
R-45 need photo  - rack mount of R-42  10"
500 ohm
45-50? SX-42

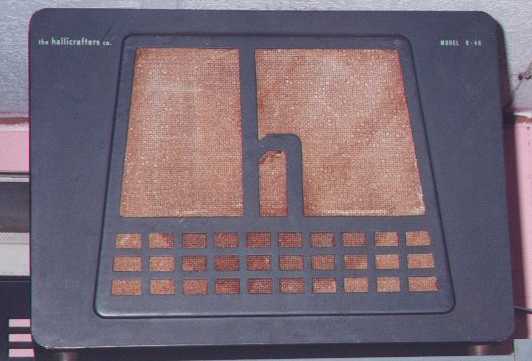

R-46 halli-r46-2.jpg (19362 bytes) black black "h" in center, gold grille, 10-7/8" deep 10"
5000 ohm
 - SX-88, SX-62
R-46A halli-r46-2.jpg (19362 bytes) black black "h",  gold grille, 10-7/8" deep 10"
3.2 ohm
 - SX-101

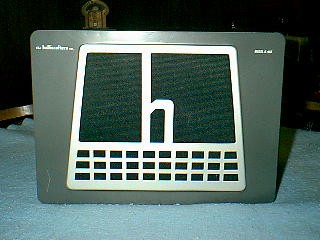

R-46B halli_r46b_front.jpg (24004 bytes) black silver "h",  black grille, 8" deep 10"
3.2 ohm
 - SX-101A

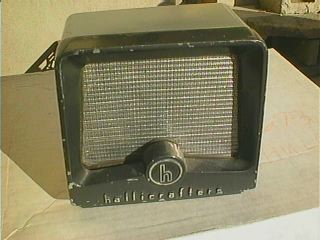

R-47 halli_r47.jpg (16040 bytes) gray small, old style "h" in  lower cntr 4"  - SX-140

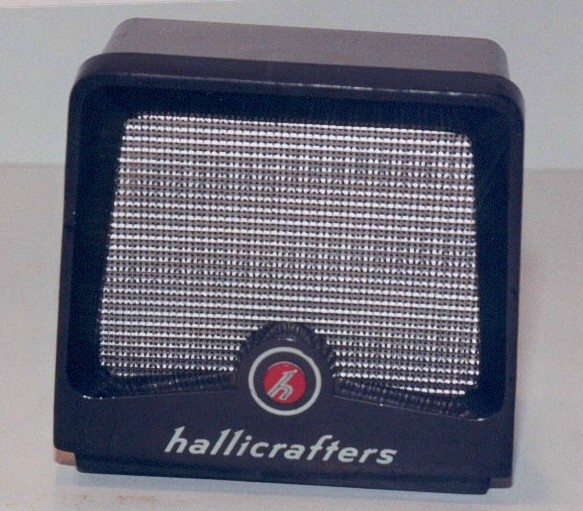

R-47A halli_r47a.jpg (245945 bytes) gray small, red new style "h" in  lower cntr 4"  - SX-122
SX-115

R-47A mobile
(rear view)
tnx K8MFO

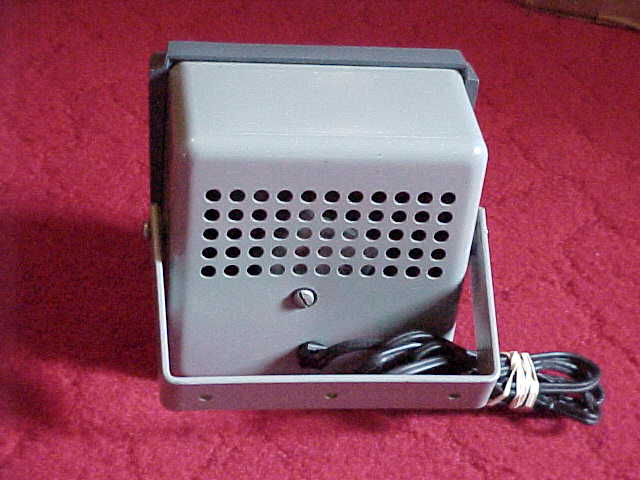

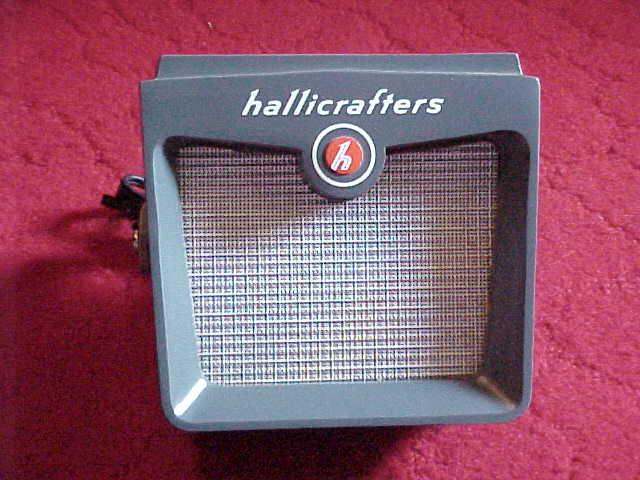

halli-r47am-1.jpg (46861 bytes) gray like R-47A with inverted lettering 4" mobiles?

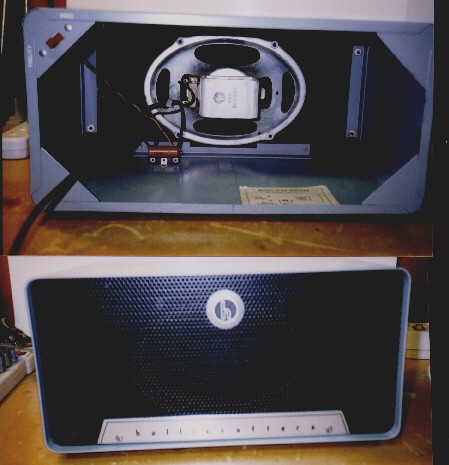

R-48 halli_r48.jpg (132778 bytes)  - low and wide, old style "h" logo in cntr  -  - SX-115,
SX-101A
R-48 variant halli-r48-v.jpg (8162 bytes)  - low and wide, no "h" in cntr  -  - ?

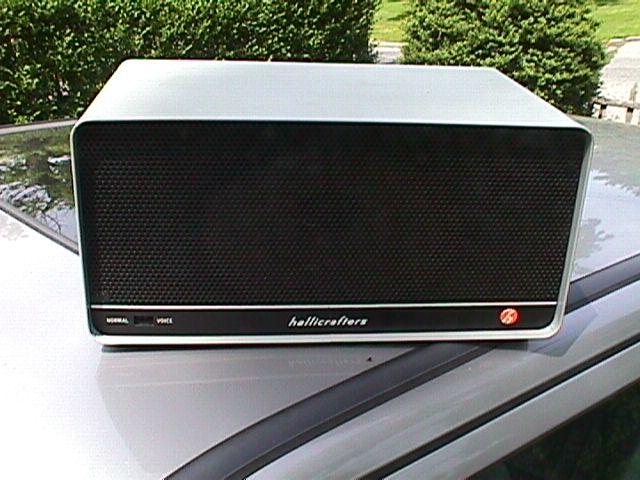

R-48A halli_r48a.jpg (59604 bytes)  - low and wide, red "h" logo at lower right, slide switch at lower left  -  - SX-117

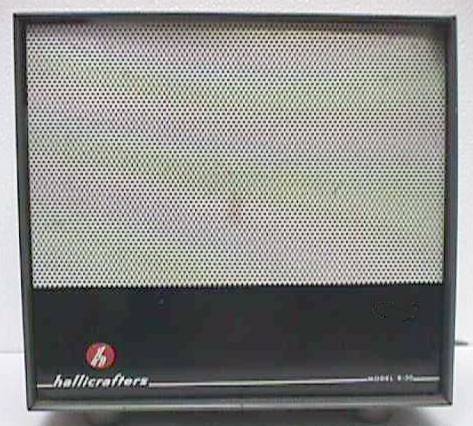

R-50 halli_r50.jpg (53483 bytes)  - square, red "h" in lower left corner  -  - SX-146

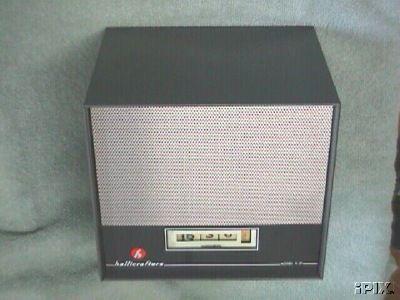

R-51 halli-r51-1.jpg (20054 bytes)  - square, red "h" in lower left corner, has clock  -  - SX-146

Hammarlund

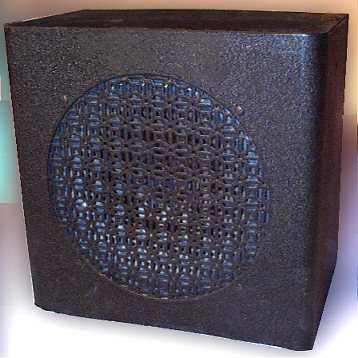

PSC-10 / SC-10 HQ_spkr.JPG (21527 bytes) black wrinkle (matches HQ-129) cane metal grille, no logo
SC-10 is cabinet only
PSC-10 included speaker
10"  - HQ-129X
PSC-10 / SC-10 HQ_spkr.JPG (21527 bytes) black wrinkle (matches HQ-120) cane metal grille, no logo
SC-10 is cabinet only
PSC-10 included speaker
SC-10G is Gray cabinet
10" - HQ-120X, SP200

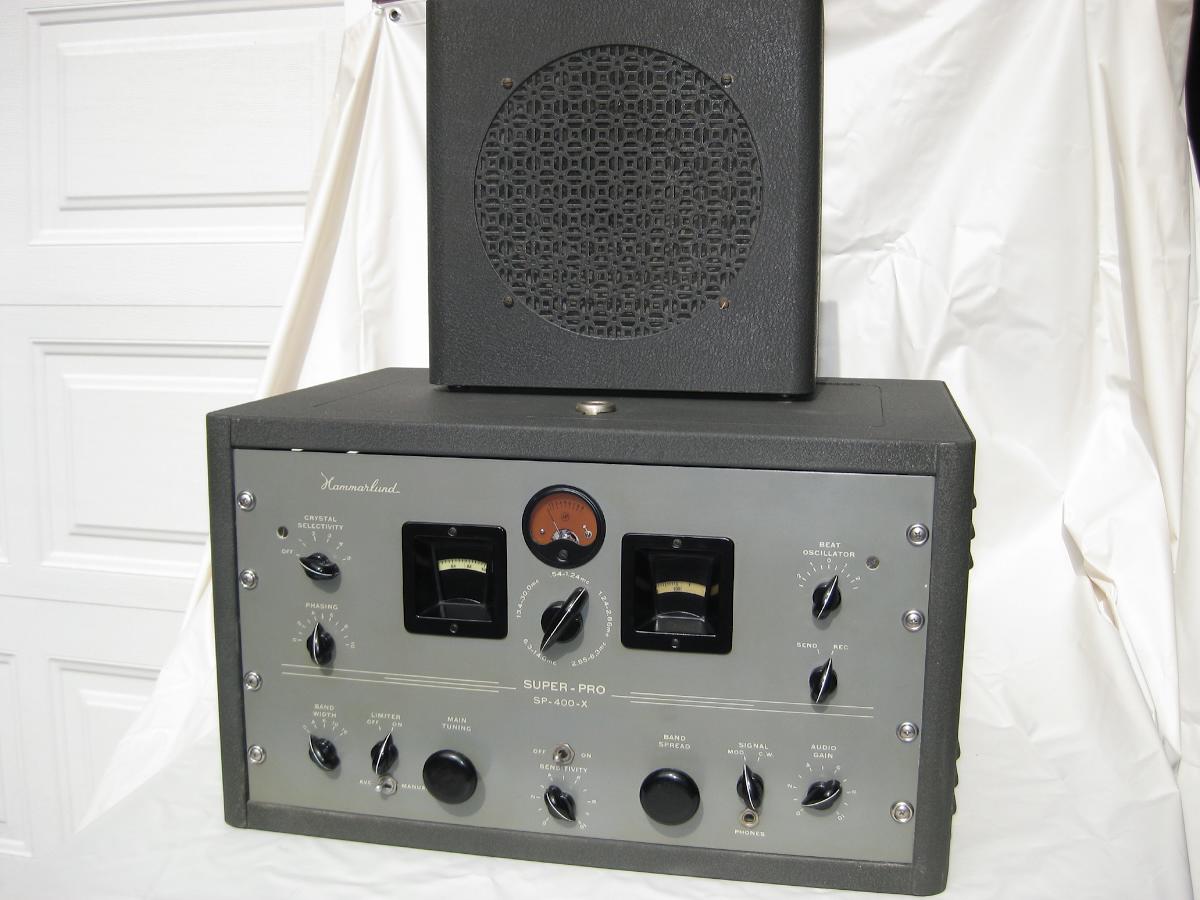

SC-10G? spkr-sp400-1507-01.jpeg (101008 bytes) dark gray wrinkle (matches SP-400)

photo thanks to W2EMN

cane metal grille, no logo
SC-10 is cabinet only
PSC-10 included speaker
SC-10G is Gray cabinet
10" - SP-400
??

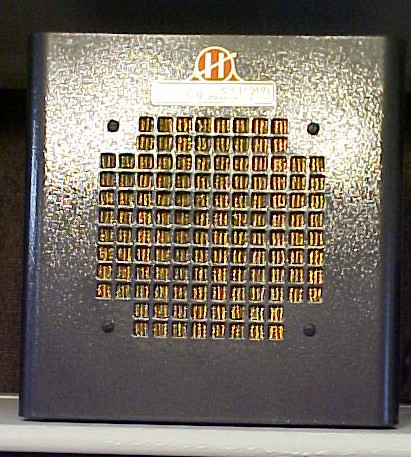

tnx AB5WG
10.5" H x 10.5" W x 7" D
10"  - HQ-140X

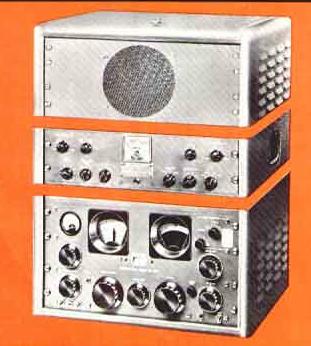

SP-300 hamm-sp-300-spkr-01.jpg (24420 bytes)  - rack mount 8"
600 ohm
 - SP-600

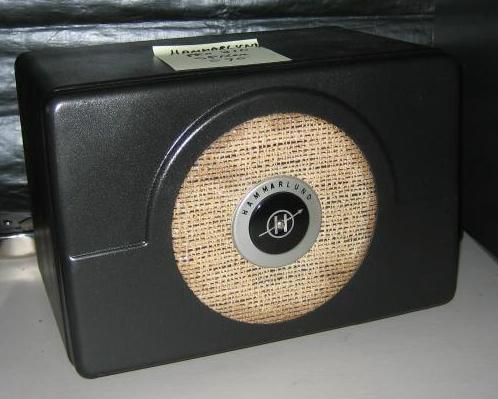

S-310? hq-pro-310-01.jpg (29863 bytes)  -  - PRO-310

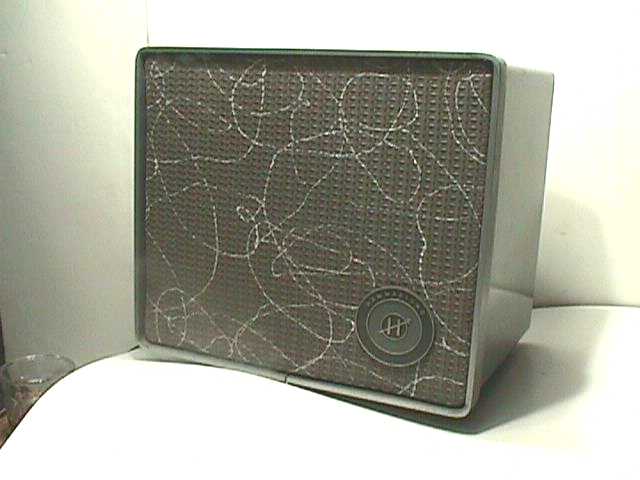

S-100 hammar-S200.JPG (28648 bytes) gray 9-5/8" x 9-5/8"
open back
6" x 9"  - HQ-110, HQ-105, HQ-160

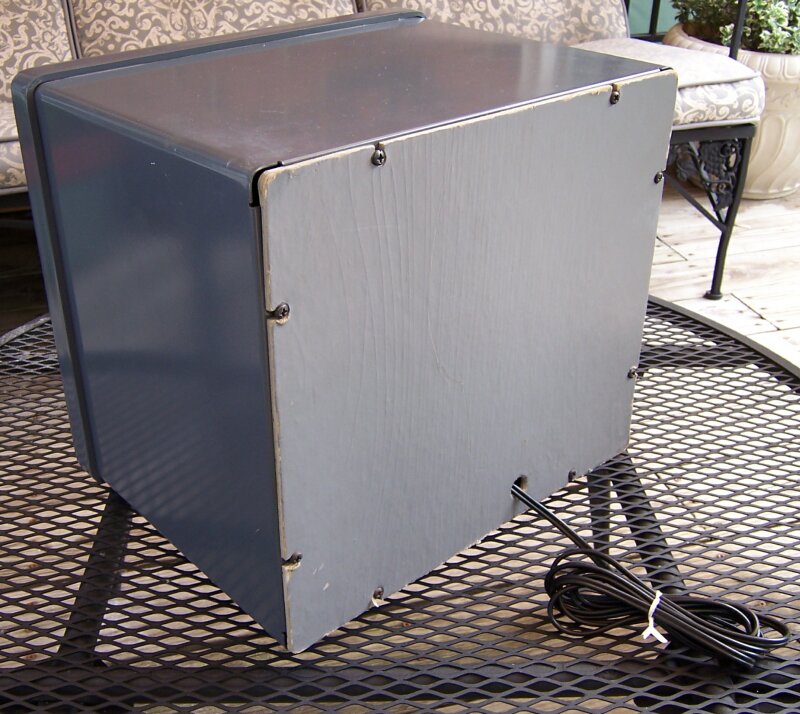

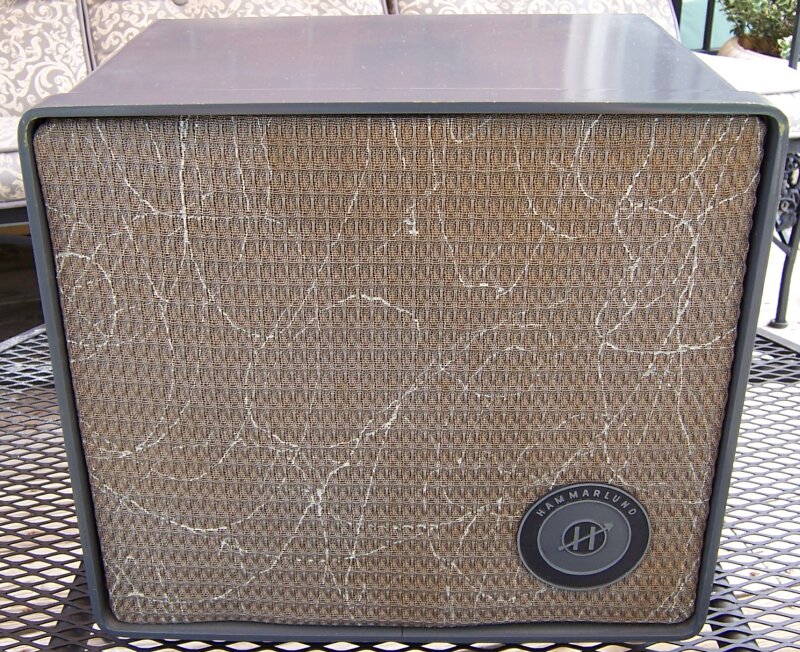

S-200 hamm-s100-201.jpg (208712 bytes) hamm-s100-203.jpg (128765 bytes) 11-7/8" x 10-3/8"
closed back
6" x 9"  - HQ-170,
HQ-180,
HQ-160,
HQ-145

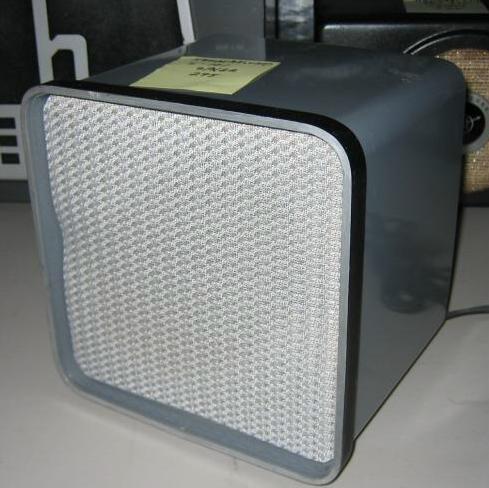

S-101 hammar-s101-01.jpg (38953 bytes)  - smaller than S-100  -  - HQ-200

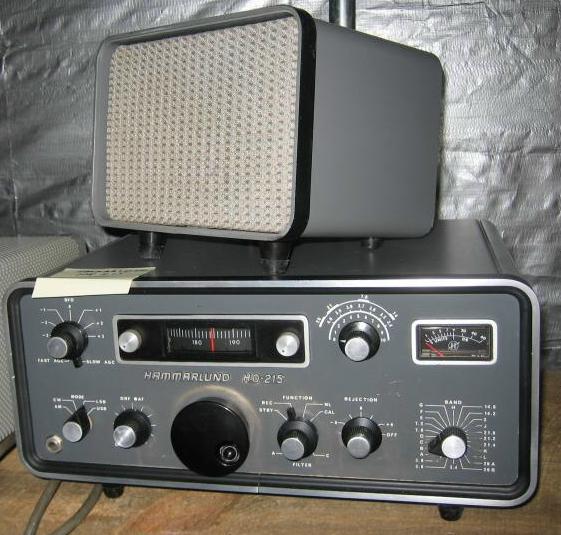

S-215 hq-215-02.jpg (56928 bytes) hq-215-01.jpg (63598 bytes) not as tall as S-101 HQ-215

Heath

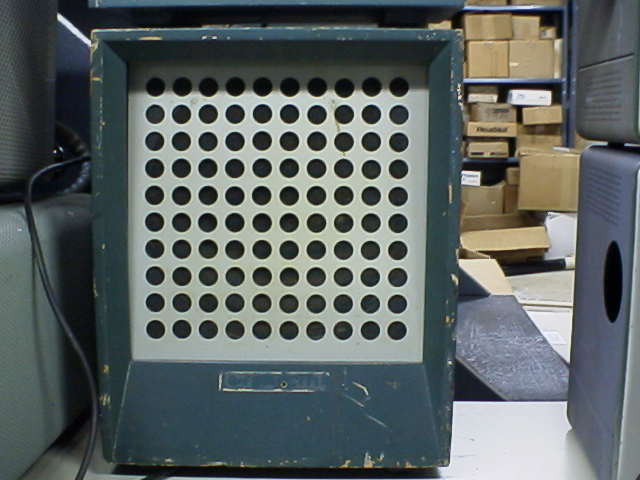

AK-5 heath-ak5.jpg (40960 bytes) green

one variant has groove around sides

kind of ugly (personal opinion), big holes in grill 8"  - RX-1 Mohawk
AK-7 heathak7.jpg (20148 bytes) smooth green sq. metal box,
smooth finish
 -  - MR-1 Comanche,
HR-20

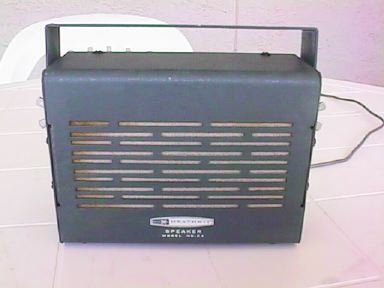

HS-24 heath_hs24.jpg (15064 bytes) wrinkle
green
mobile  -  - SB series
HW series

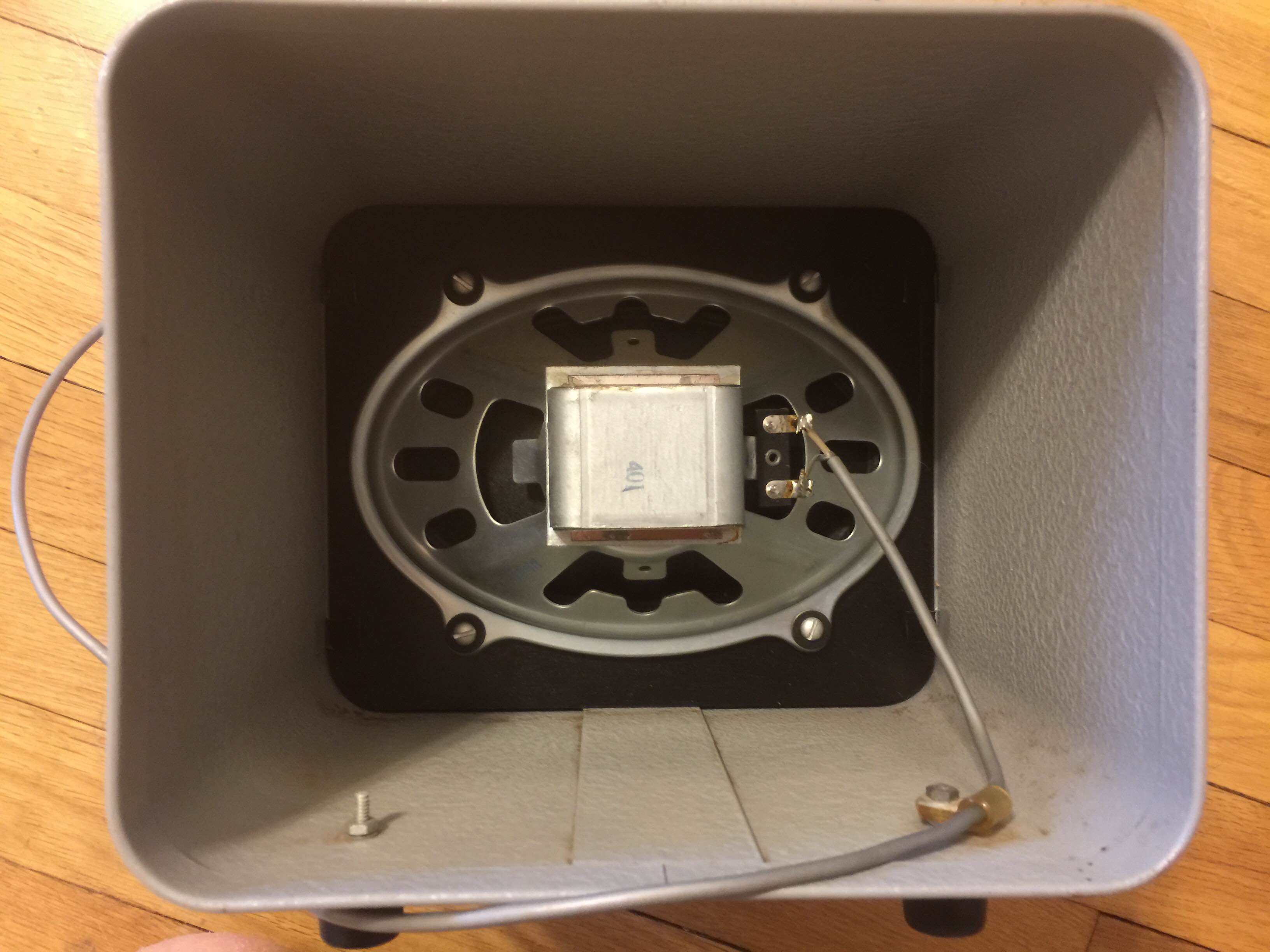

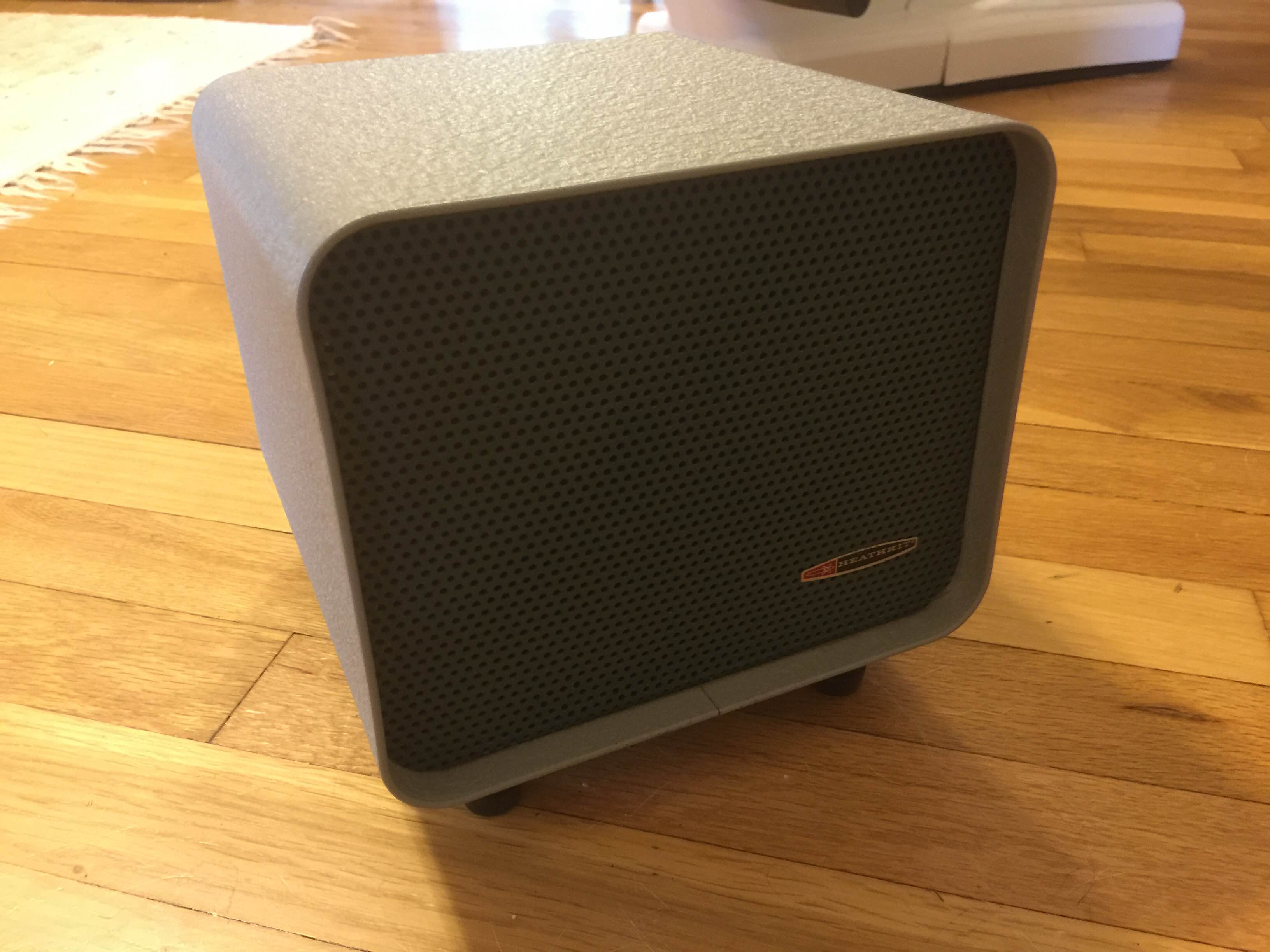

HS-34 hs34-0602.JPG (407008 bytes) hs34-0603.JPG (384428 bytes) 5x7 speaker

smaller than SB-600



In Heath Canada catalog only one year
Possibly prototypes only
Very rare
- -

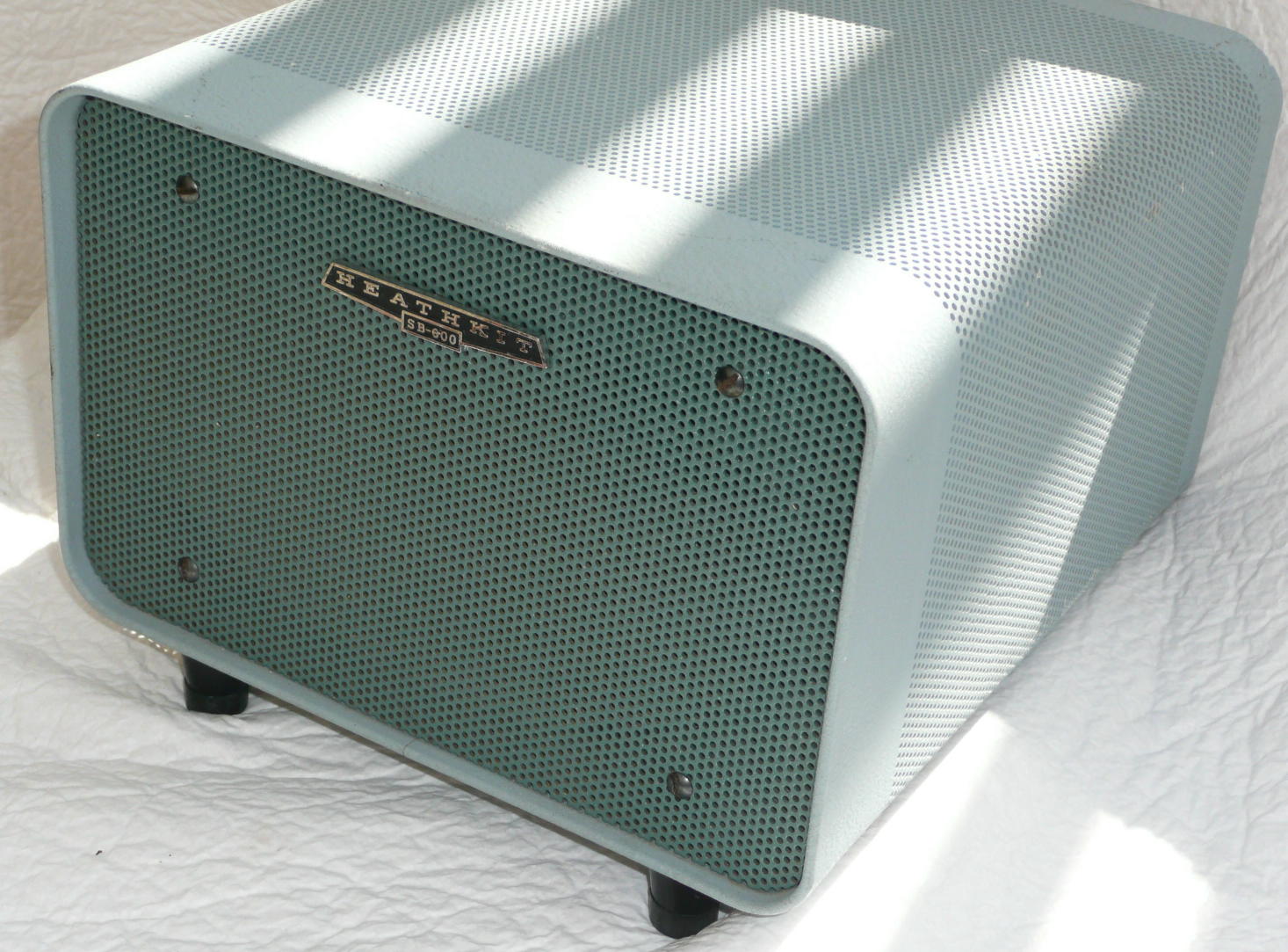

SB-600 sb600-01.JPG (288459 bytes)
photo thanks to K2RP
wrinkle
green
holds PS-23 power supply SB series
HW series

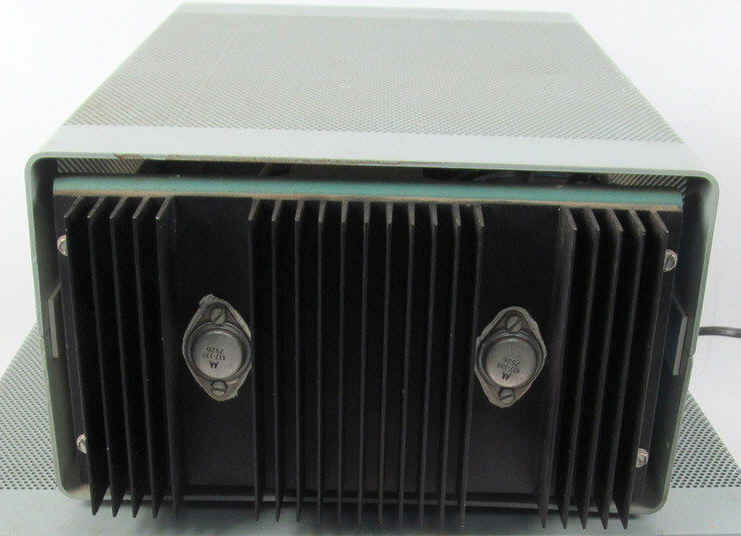

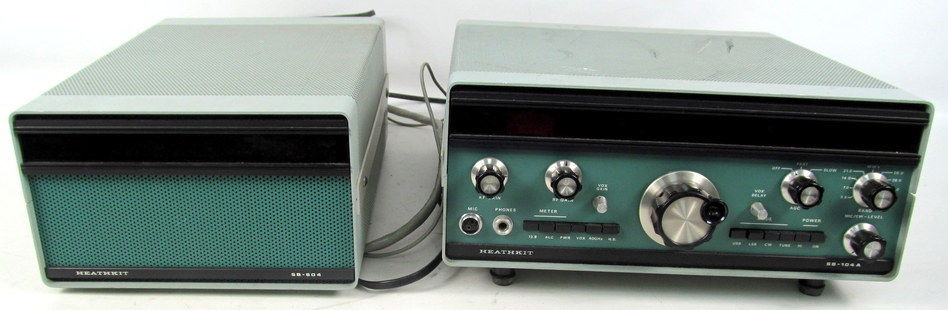

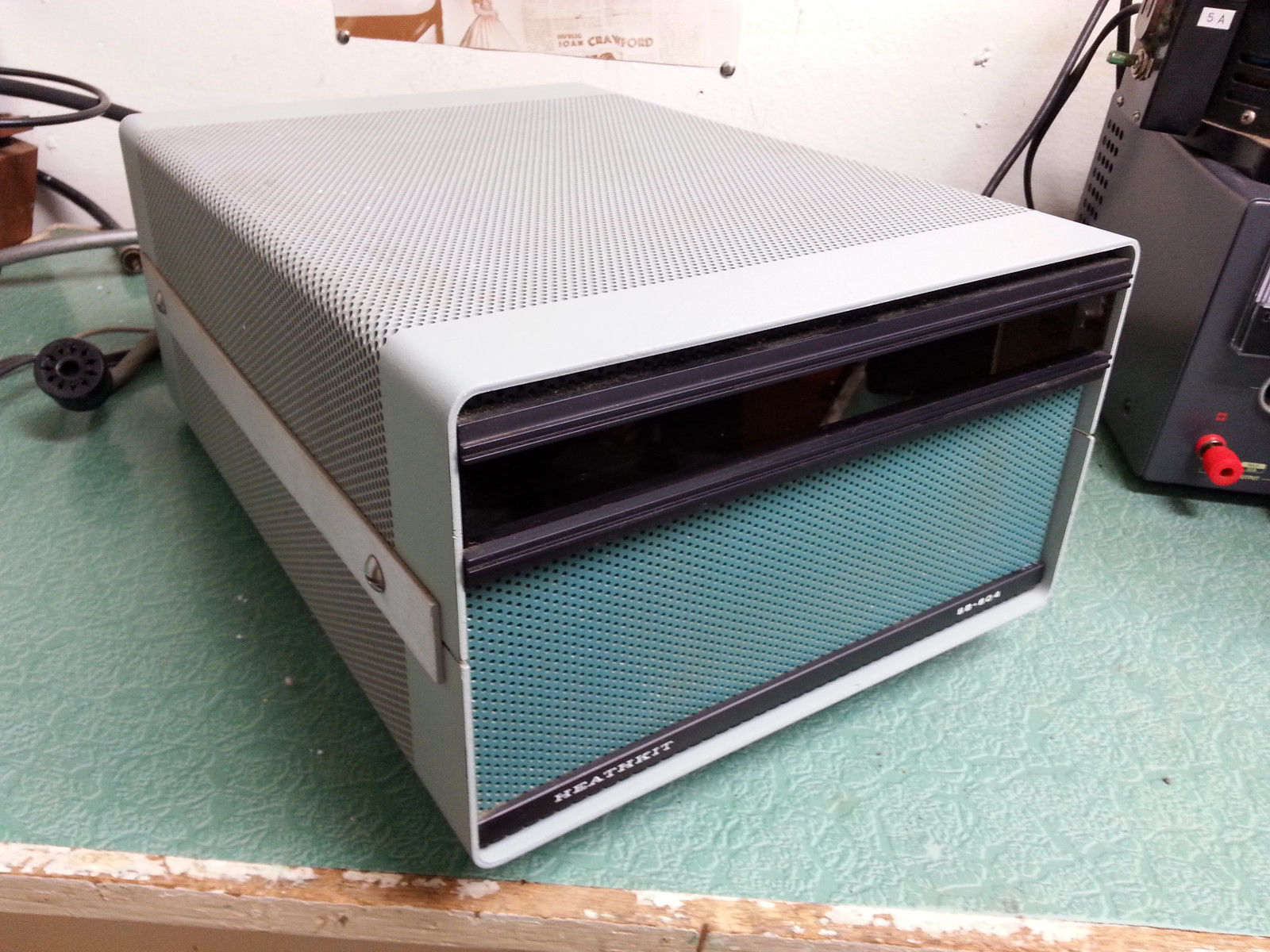

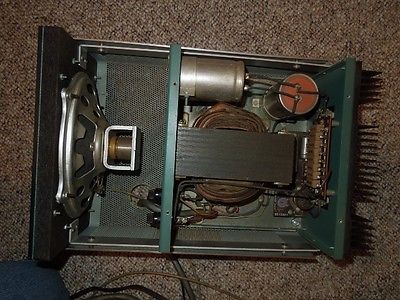

SB-604 sb604-1412-08.jpg (345933 bytes) wrinkle
green
holds HP-1144 power supply

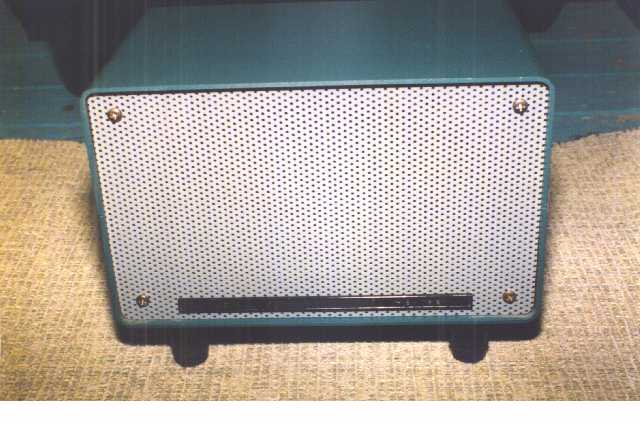

HS-1661 hs1661.jpg (43008 bytes) green not too tall  -  - HR-1680

Knight-Kit (Allied)

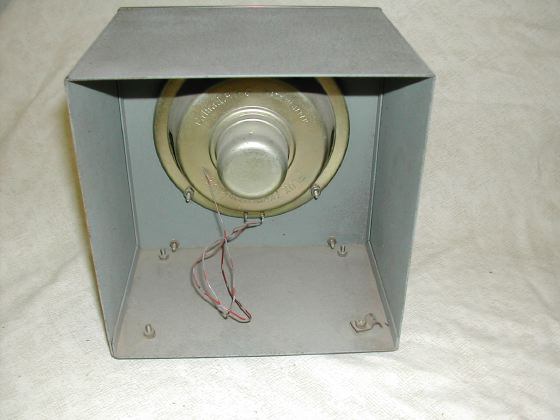

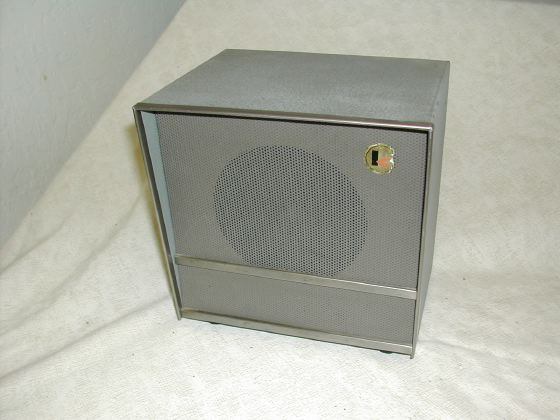

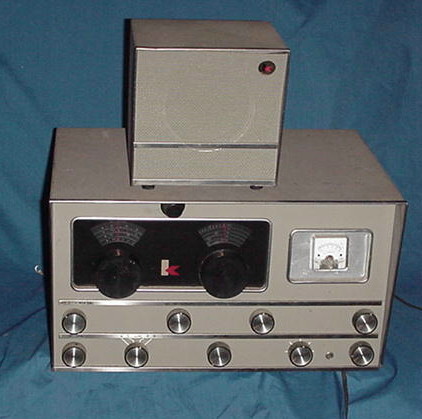

Y-728 knight-Y728-01.jpg (32906 bytes) tan
old-style non-italic "k" logo
slanted edges, chrome trim, same shape as S-8


 - 58-?? Y-726
(early version of R-100)

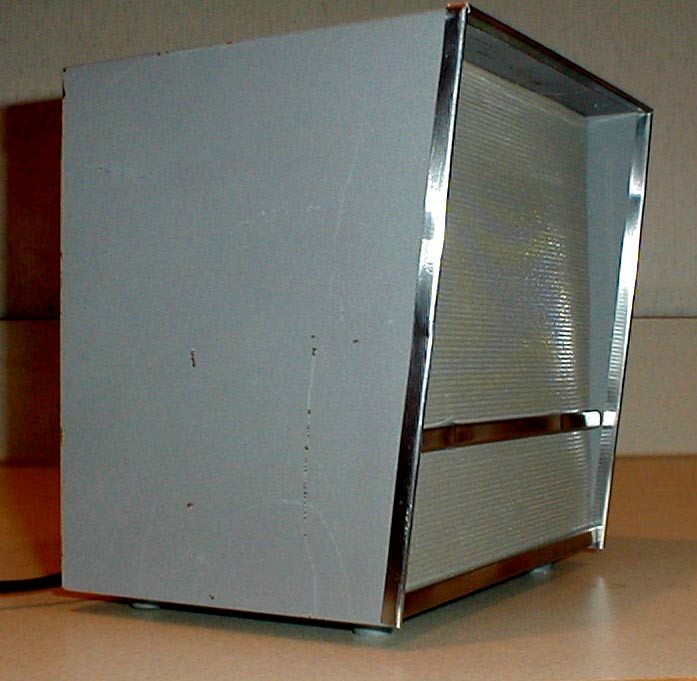

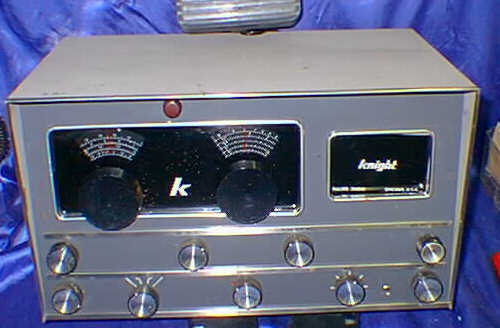

S-8 knight-s8-2.jpg (105942 bytes) gray

italic "k" logo

slanted edges, chrome trim, same shape as Y-728    - R-100

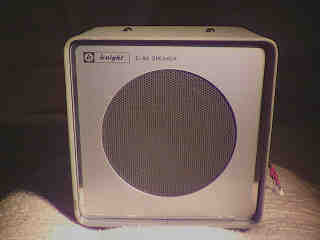

S-8A knights8a.jpg (5768 bytes) gray/chrome

italic "knight" logo

 -  -  - R-100A
R-55, R-55A

National

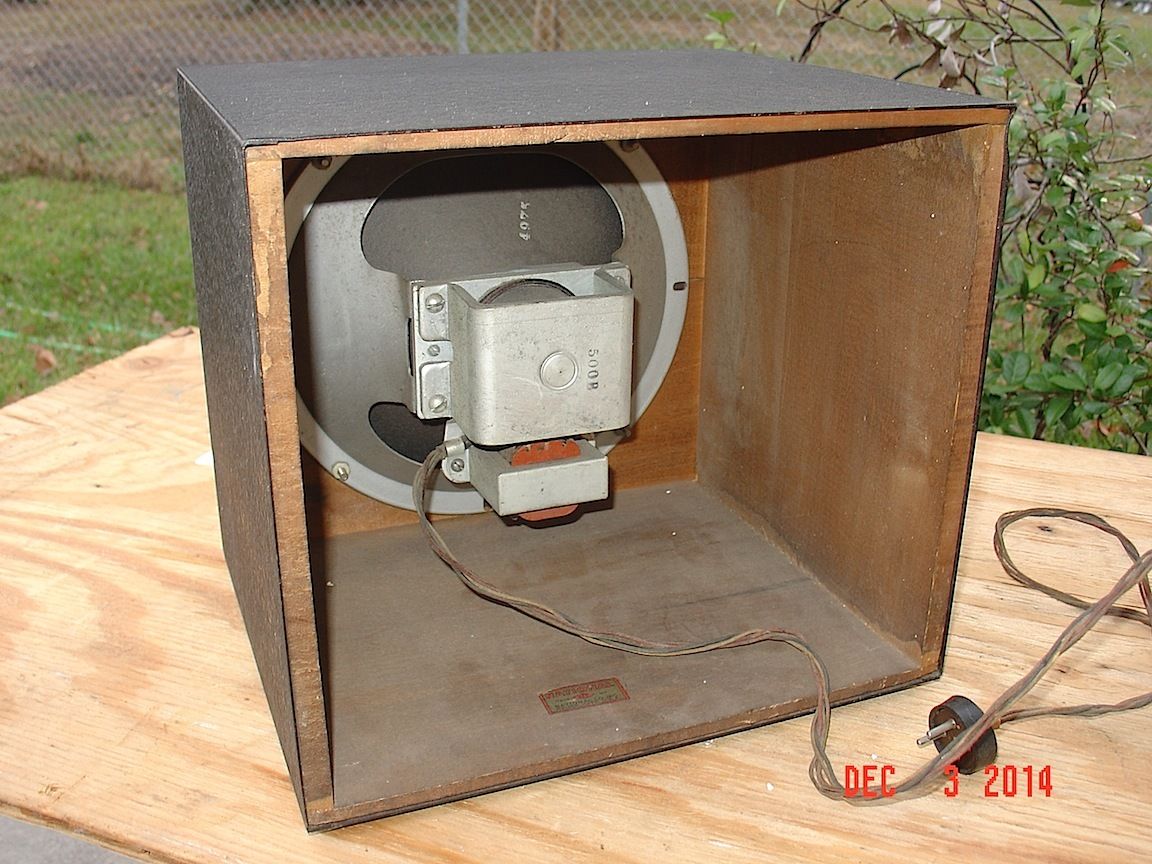

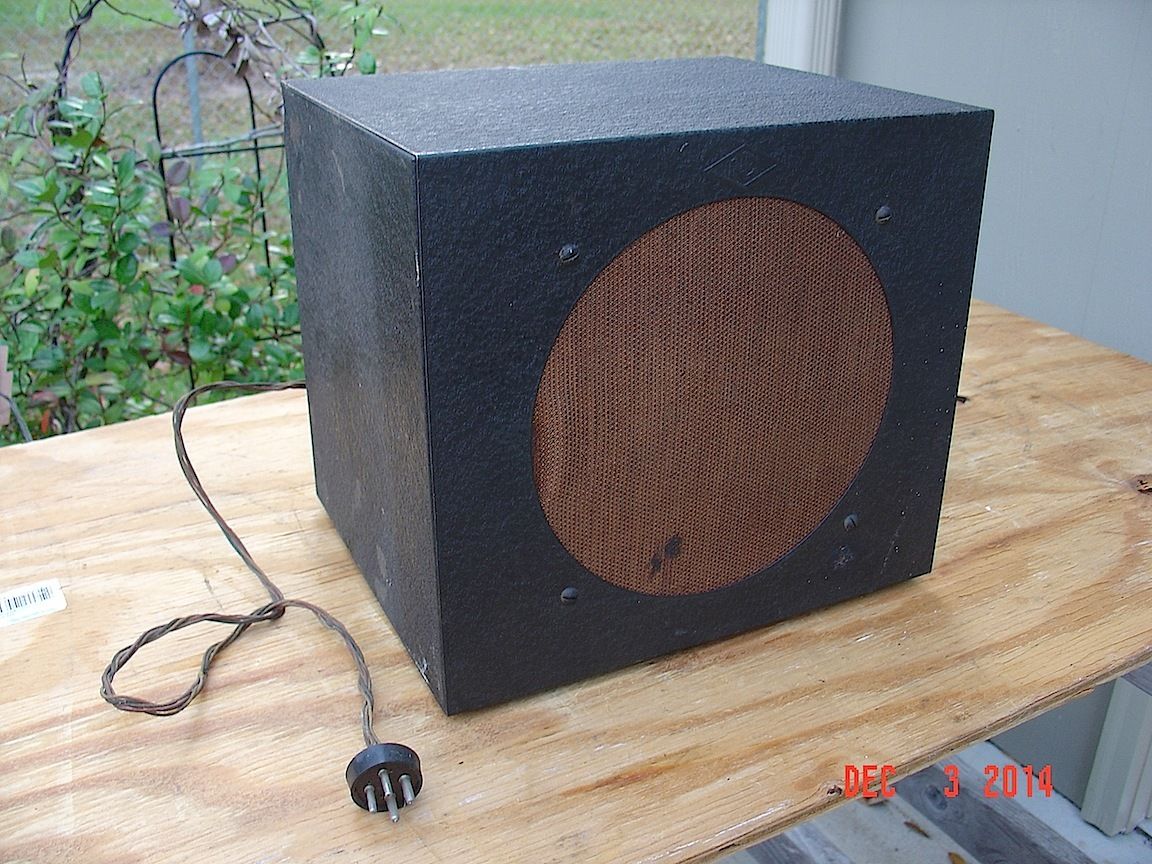

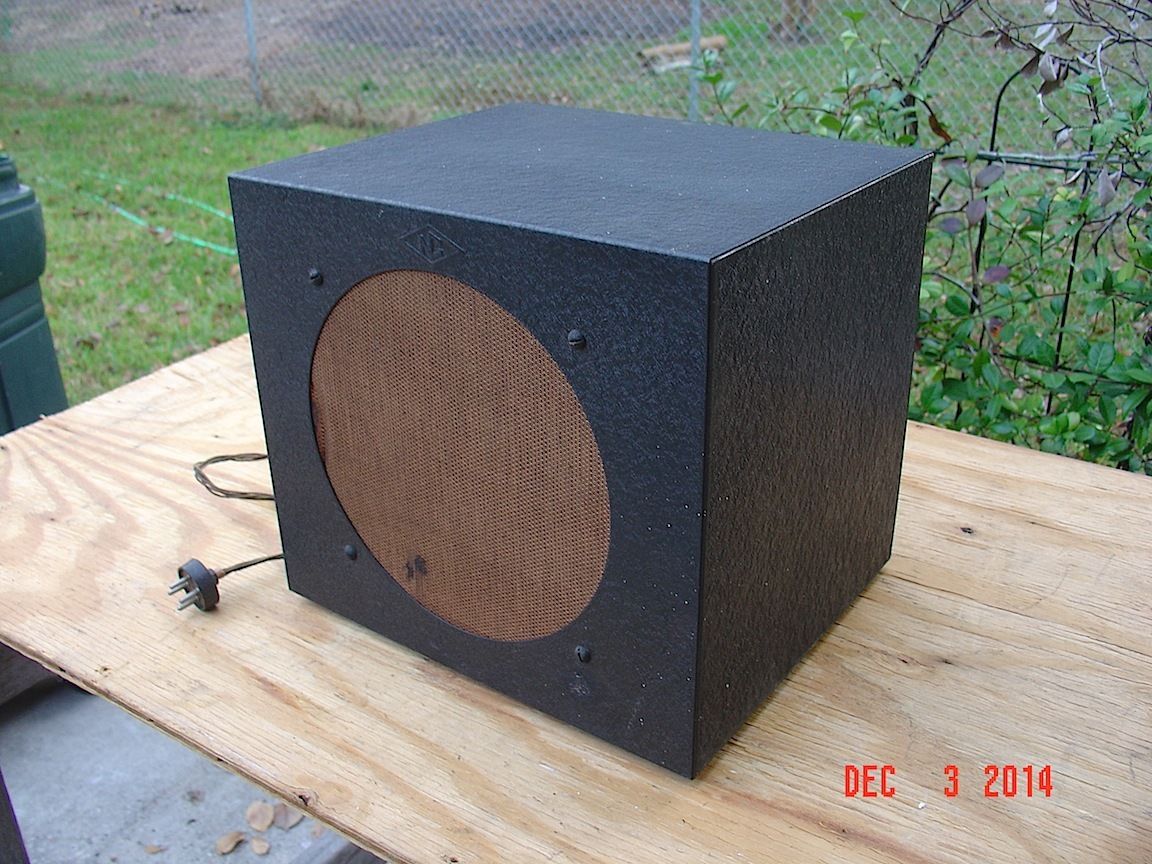

model? spkr-ndc10-1412-01.JPG (208800 bytes) spkr-ndc10-1412-02.JPG (198997 bytes) spkr-ndc10-1412-03.JPG (181001 bytes) 10" electrodunamic ? ?

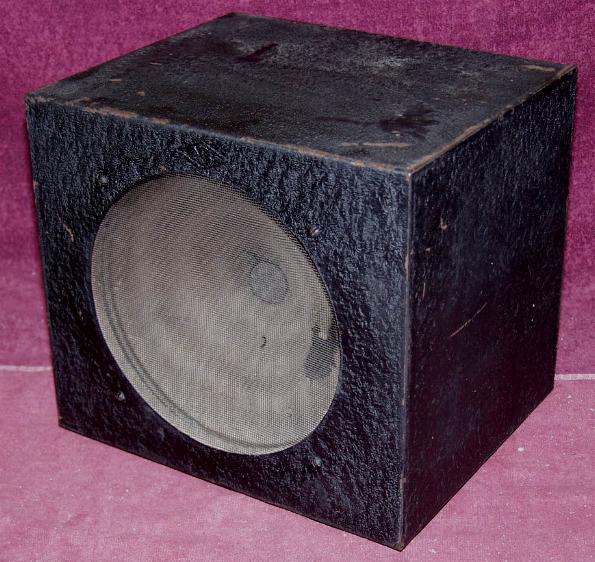

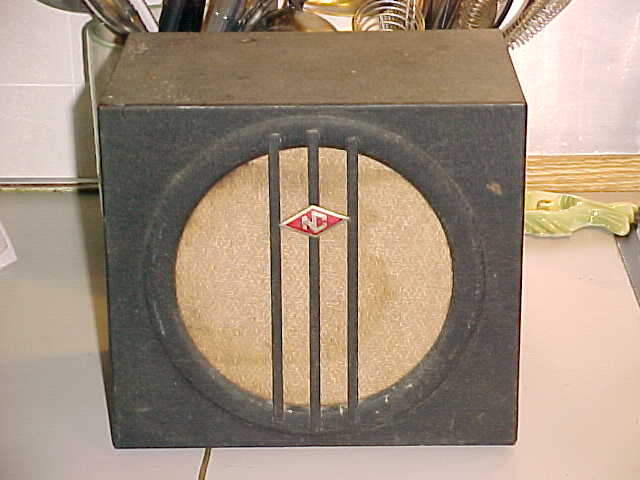

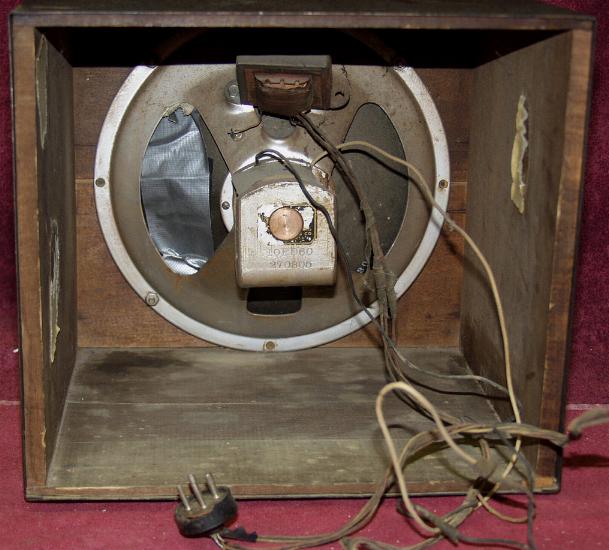

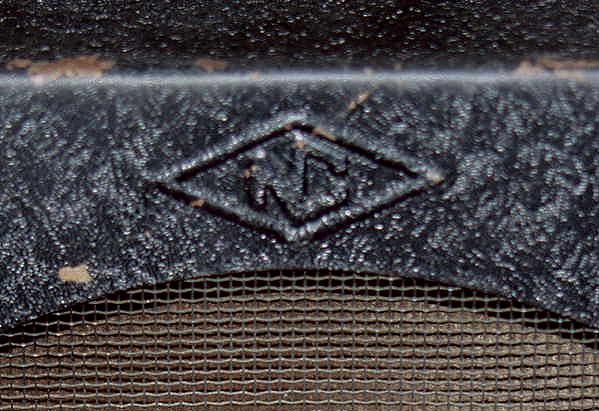

model? nat-spkr-early-01.jpg (74782 bytes) nat-spkr-early-02.jpg (57805 bytes) nat-spkr-early-03.jpg (54217 bytes)  8" electrodynamic


info

 - 1935 HRO.

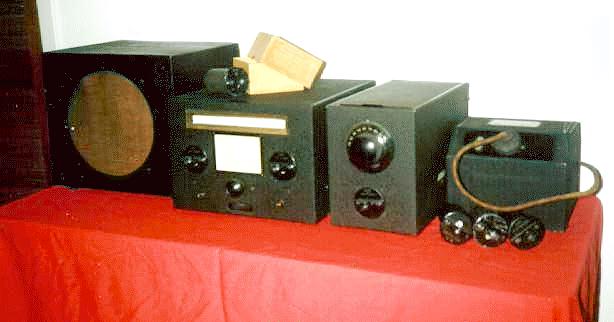

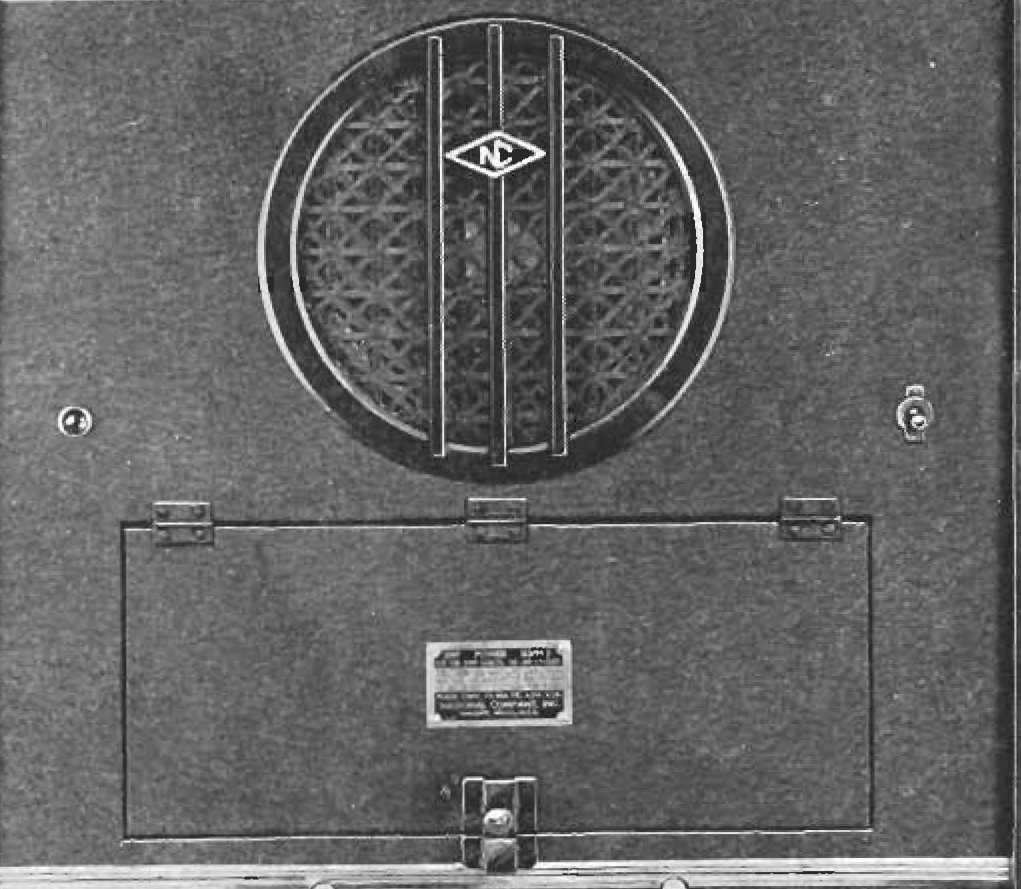

FB-7, FB-XA

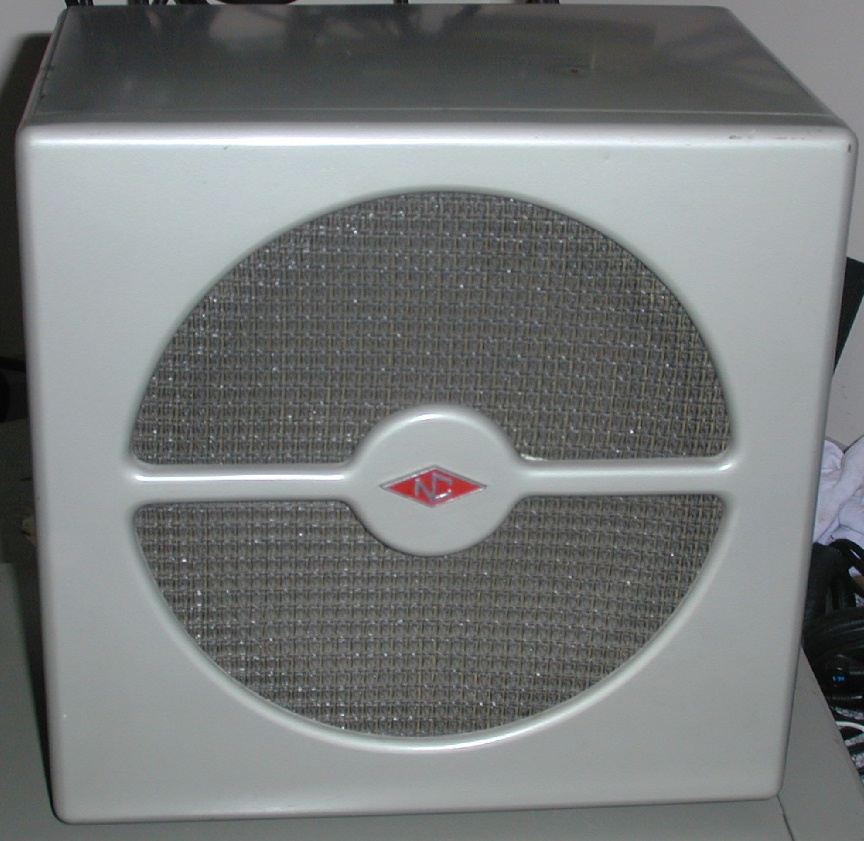

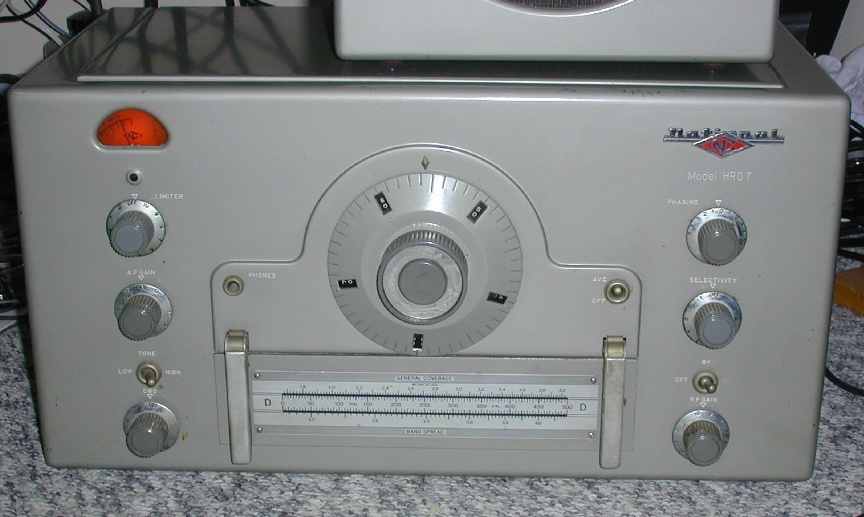

HRO-7TS nat-hrp7ts.JPG (217081 bytes) light gray


small, center logo 8"  - HRO-7
MCR need photo  - Table Model 8" PM dynamic loudspeaker with matching transformer  xfmr  - HRO-7,
other?
RFSH need photo  - same as MCR but mounted on a 8 3/4" high rack panel  - 38-47 HRO-7,
other?
MCS-8
tnx W5NTQ
8" dynamic
8" - 7000 ohms

cabinet is NDC-8

38-46 HRO-Sr.

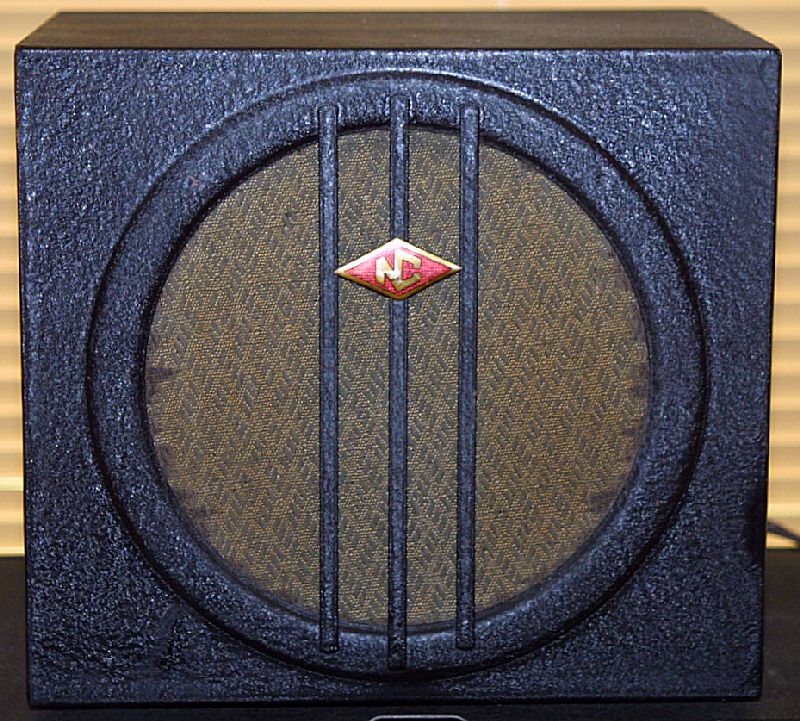

HRO-5TA1

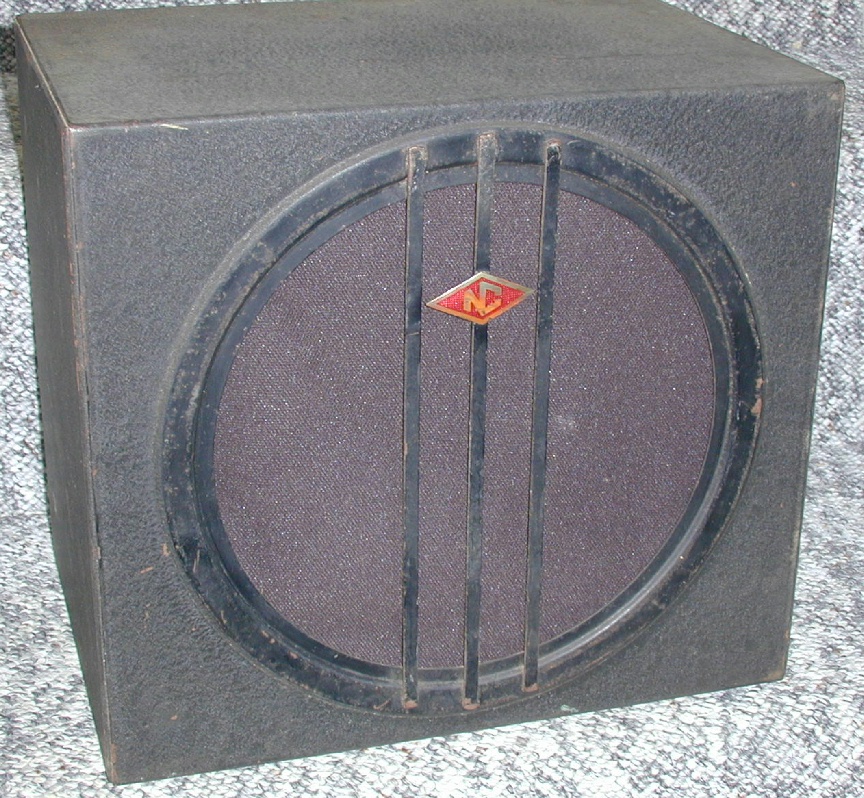

DCS-10 nat-dcs-10.jpg (358827 bytes)  black


embossed logo 10" - 500 ohm

cabinet is NDC-10

39-41 NC-100, NC-101X
DCS-8 need photo black embossed logo 8" 39-41 NC-100, NC-101X
DCS-8G need photo gray like DCS-8 but gray  -  - NC-80X
NC-81X

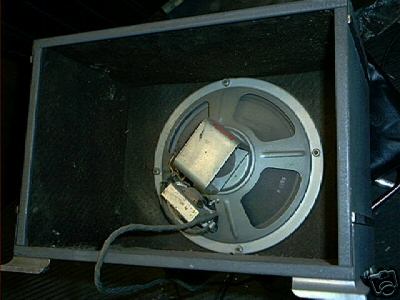

NC-2-TSG nat-nc2ts-01.jpg (20851 bytes) 2 tone gray

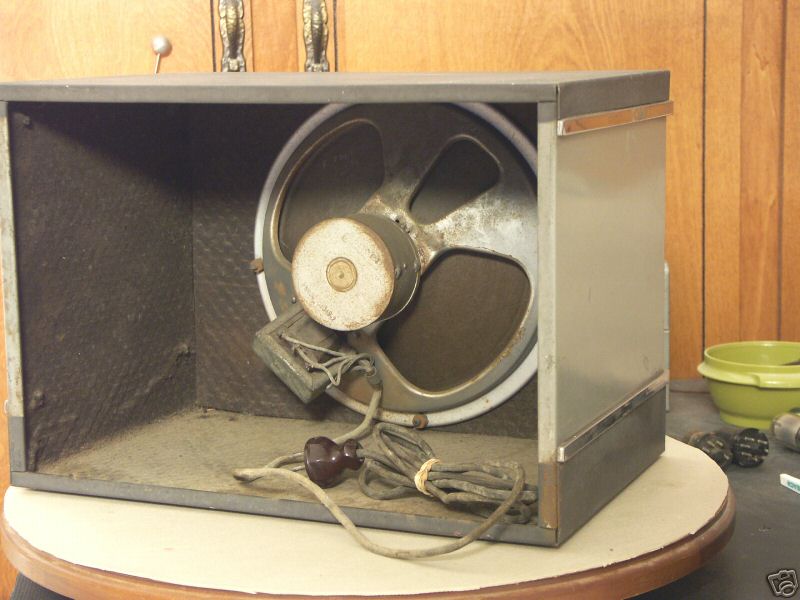

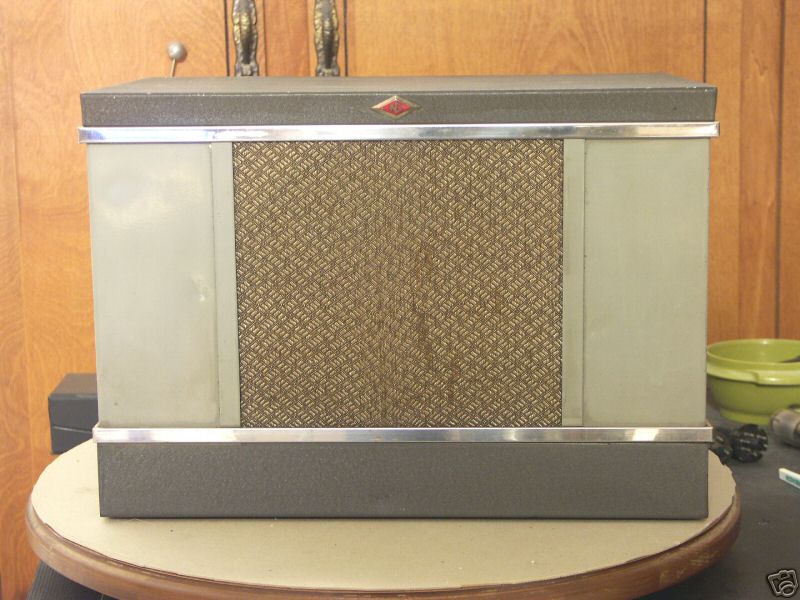

NC-200-TSG nat-nc200ts-101.jpg (85435 bytes) 2 tone gray
chrome trim
no feet
39-41 NC-200

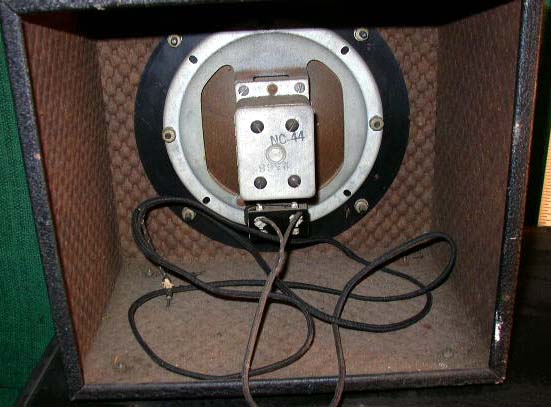

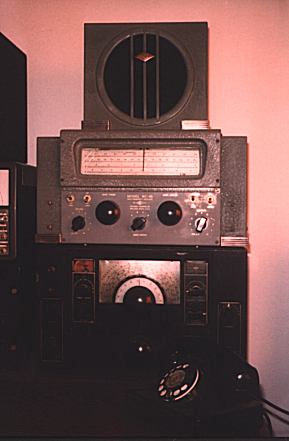

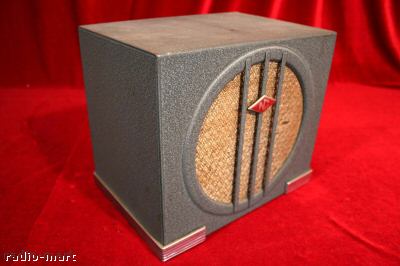

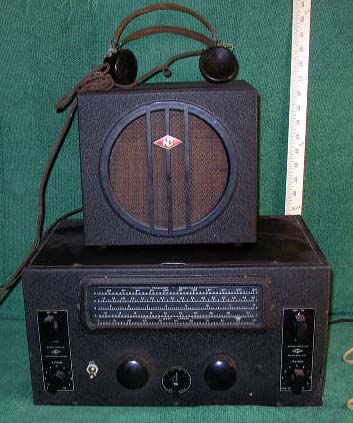

NC-44 spkr nat-nc44-spkr.jpg (32338 bytes) nat-nc44-spkr-02.jpg (39812 bytes)  - NC-44

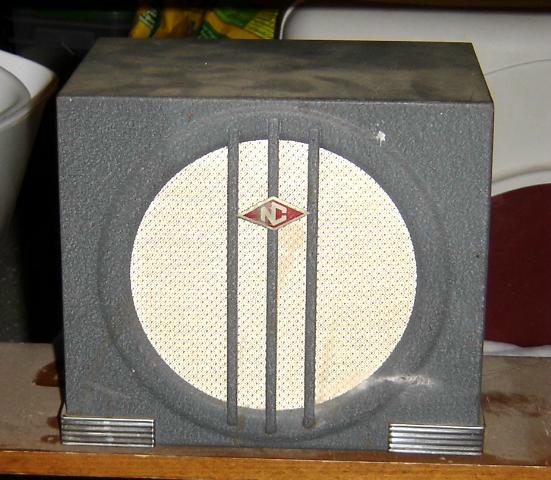

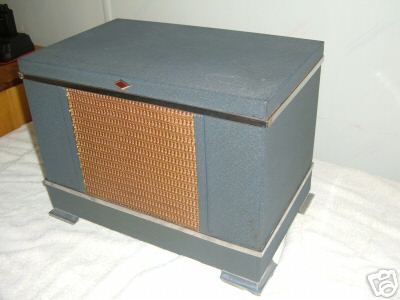

NC-46TS nat-240-spkr-02.jpg (16886 bytes) nat-nc46ts-01.JPG (50069 bytes) 8-7/8" high x 10-7/16" wide x 7-1/2" deep
matches NC-46
chrome base


 - 45-47 NC-46
NC-98TS nc125-ts.jpg (20564 bytes) gray hammertone  -  10"  - NC-98

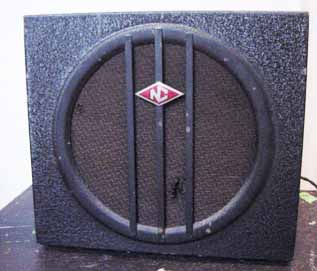

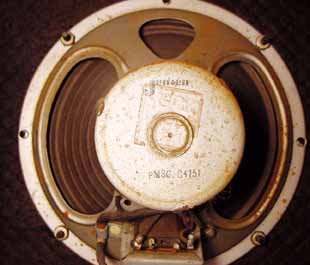

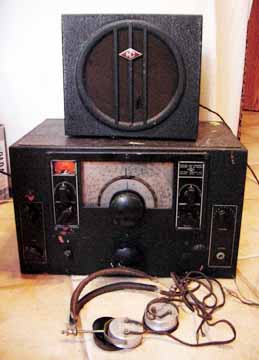

NC-100TS nat-nc100spkr-101.jpg (18788 bytes) nat-nc100spkr-102.jpg (20660 bytes) nat-nc100-101.jpg (21279 bytes)  -  - NC-100

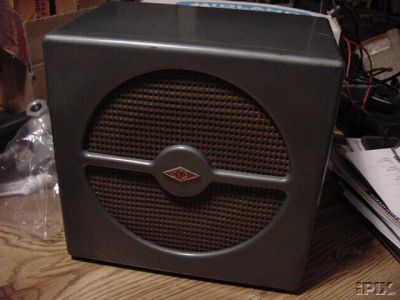

NC-125TS nc-125Tspkr-01.jpg (41812 bytes) nc125-ts.jpg (20564 bytes)
gray hammertone
 -  -  - NC-125

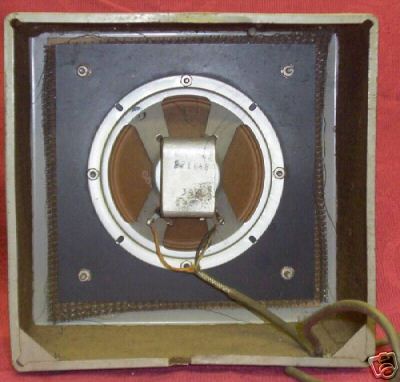

NC-173TS nat-nc173ts-101.jpg (17717 bytes) nat-nc173ts-102.jpg (28417 bytes) center logo 10" NC-173

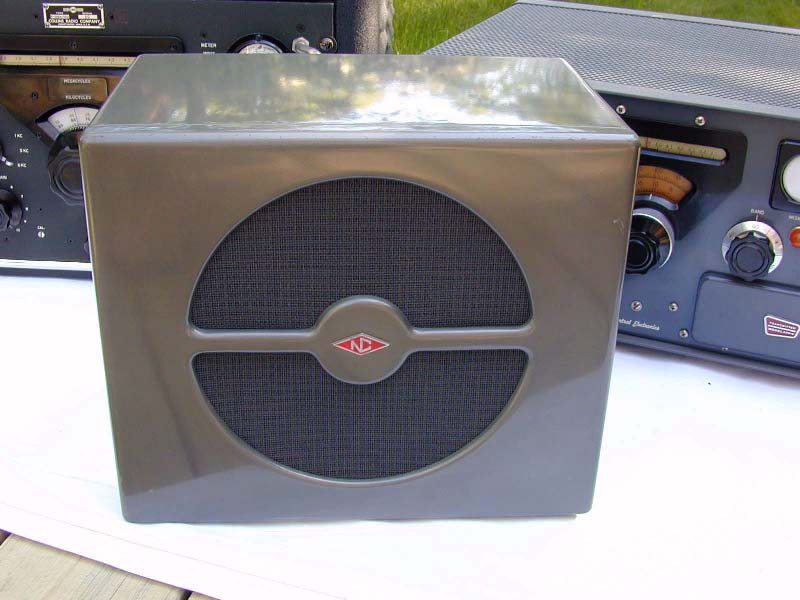

NC-183TS nc183-spkr.jpg (64241 bytes) light gray  center logo 10"  - NC-183

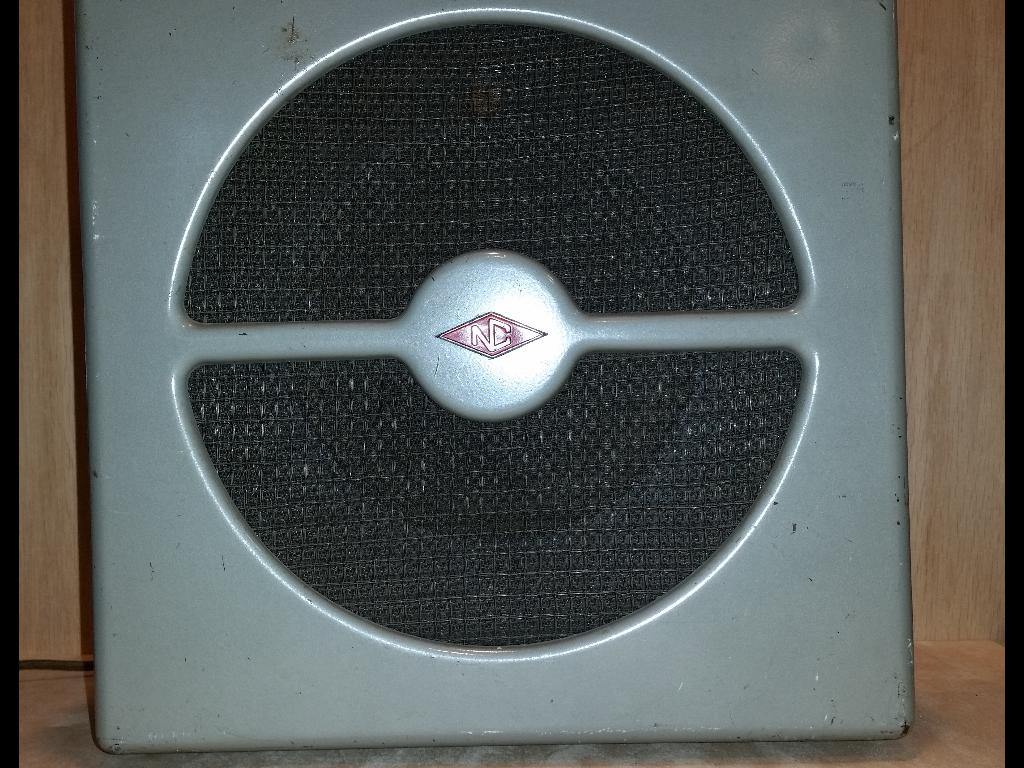

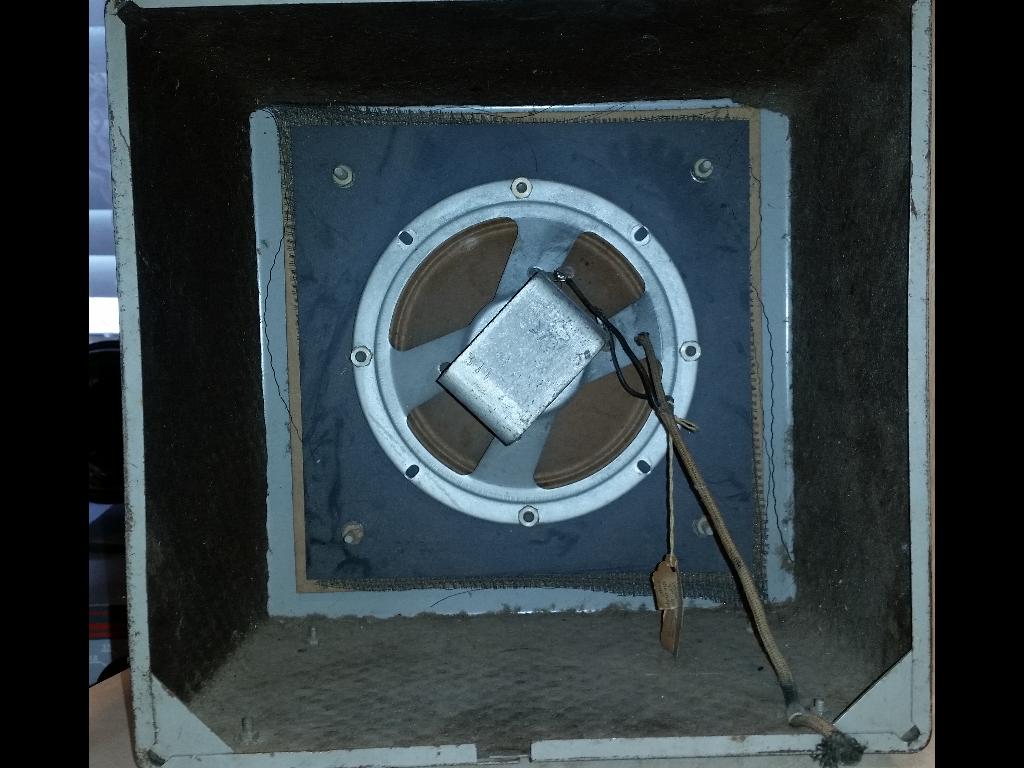

HRO-50TS HRO50TSpkr.jpg (148299 bytes) light gray

photos thanks to N0DGN

 center logo 10"


 - HRO-50
HRO-50-T-1
HRO-50RS need photo black rack mount 8"  - HRO-50
NC-183DTS need photo dark gray  center logo 10"  - NC-183D
NC-183DRS

LS-228/U


military version is LS-228/U

10"  - R-651/URR-39

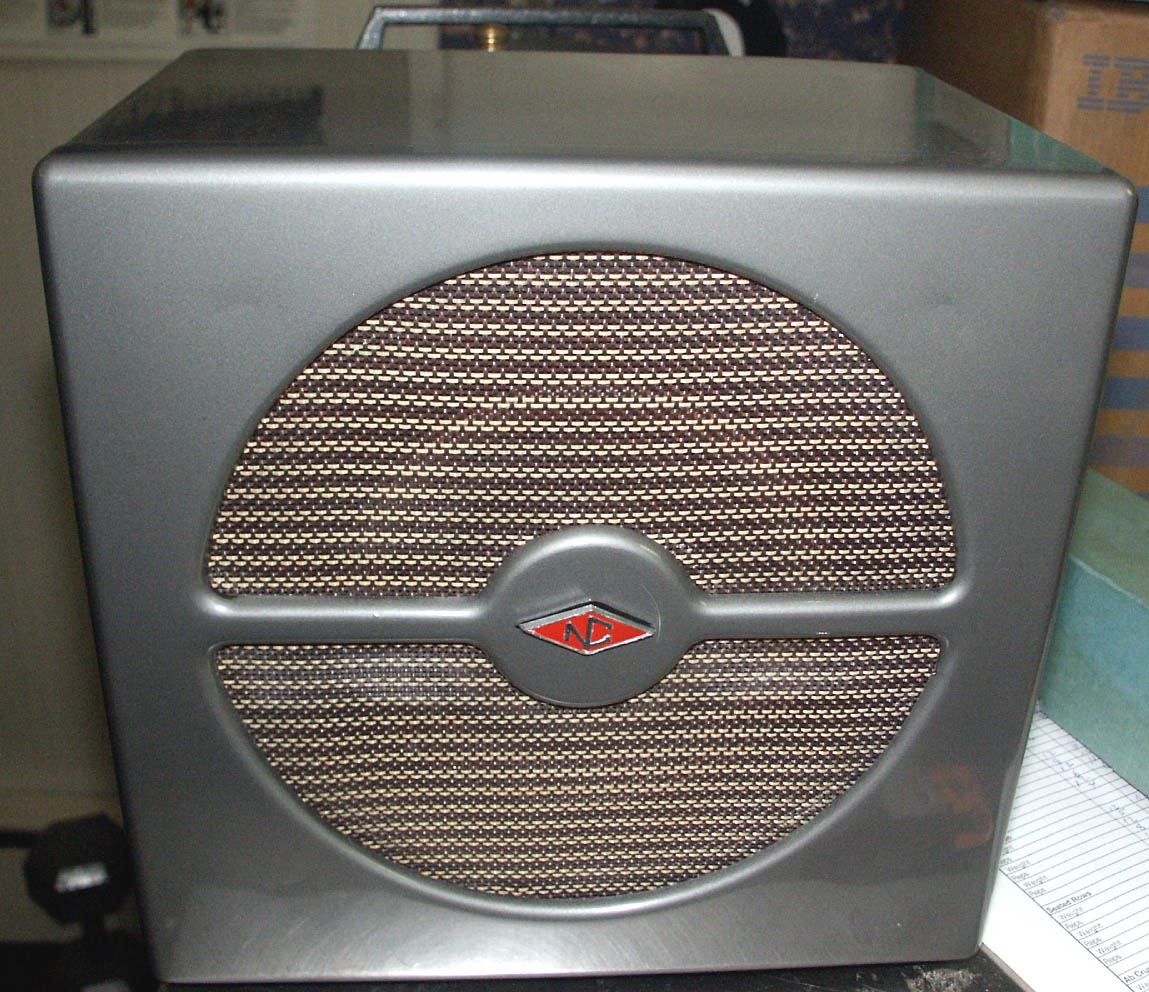

HRO-60TS nat-hro60-spkr.jpg (283363 bytes) dark gray  center logo  10"  - HRO-60
HRO-60RS need photo dark gray rack mount 10"  - HRO-60
HRO-60-SC2 need photo dark gray rack mount with coil container 10"  - HRO-60

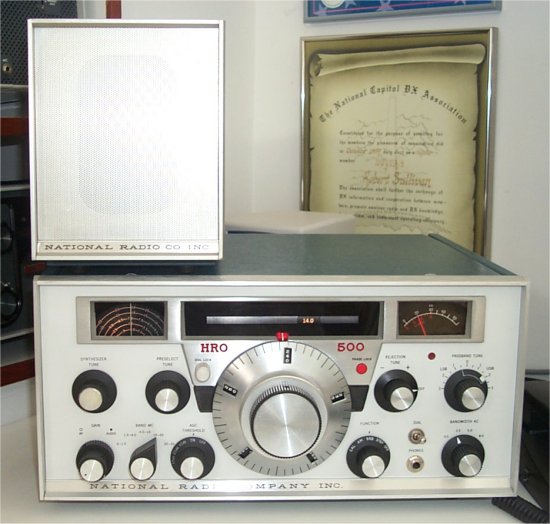

HRO-500TS hro500ts-01.jpg (56068 bytes) photo thanks to Bob W0YVA - - - HRO-500

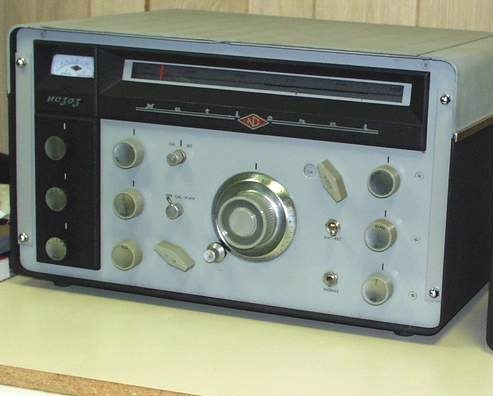

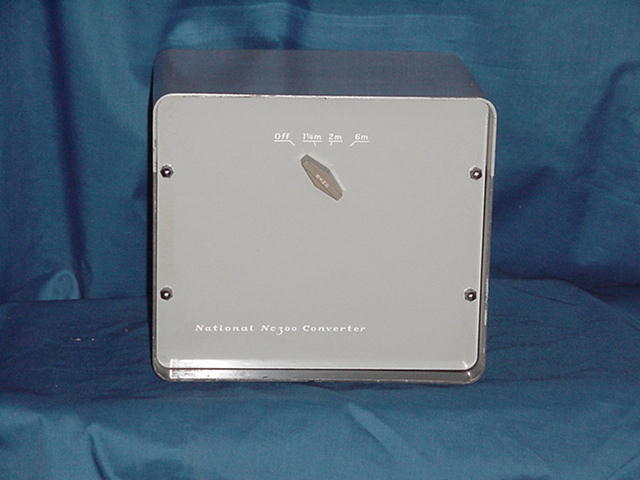

Click here for more NC-300 and NC-303 info including speakers


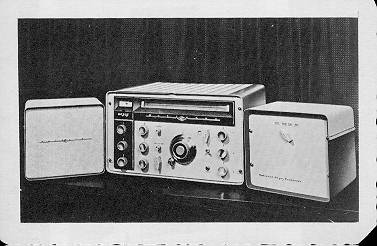

NC-300TS smooth gray 2-tone



no side trim
lightning bolt logo
matching converter cabinet avail.
 -  - early NC-300

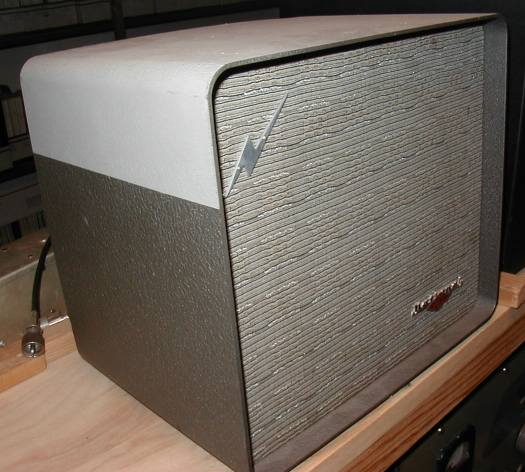

NC-300TS 300ts-later-01.JPG (47489 bytes) wrinkle gray 2-tone


(see 9/98 CQ cover)
no side trim.
lightning bolt logo.
matching converter cabinet avail.
 - late NC-300

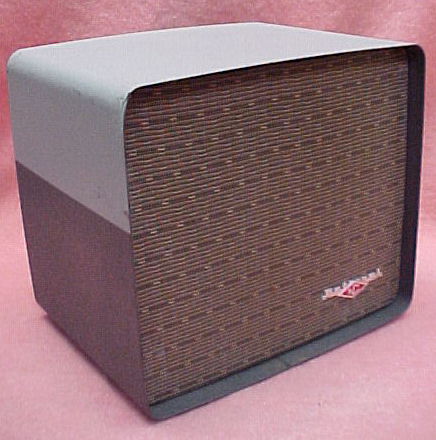

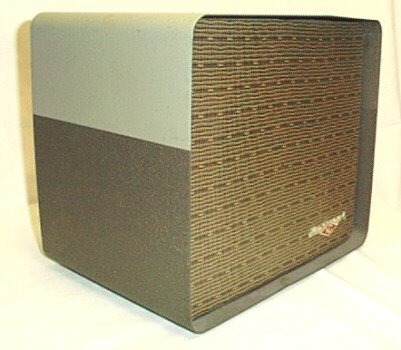

NTS-1 nat-nts1-01.jpg (42859 bytes) wrinkle gray 2-tone
no side trim
no lightning bolt logo
lower two-tone "equator"
 -  - NC-188

NC-109

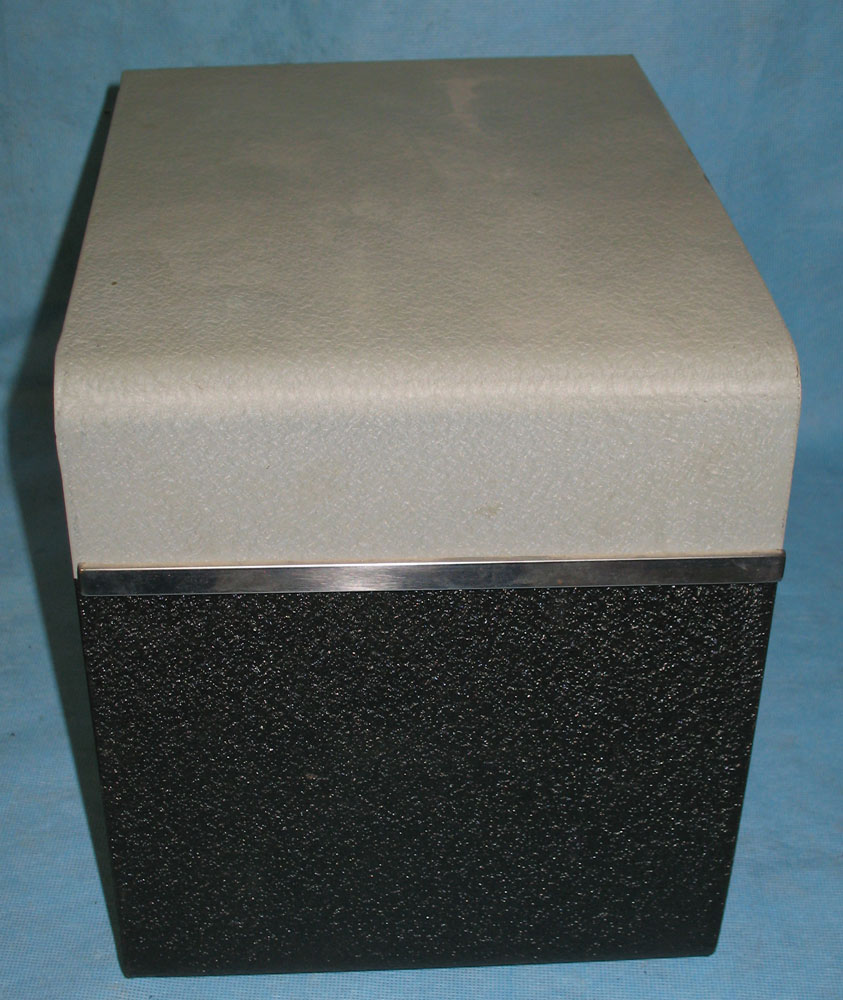

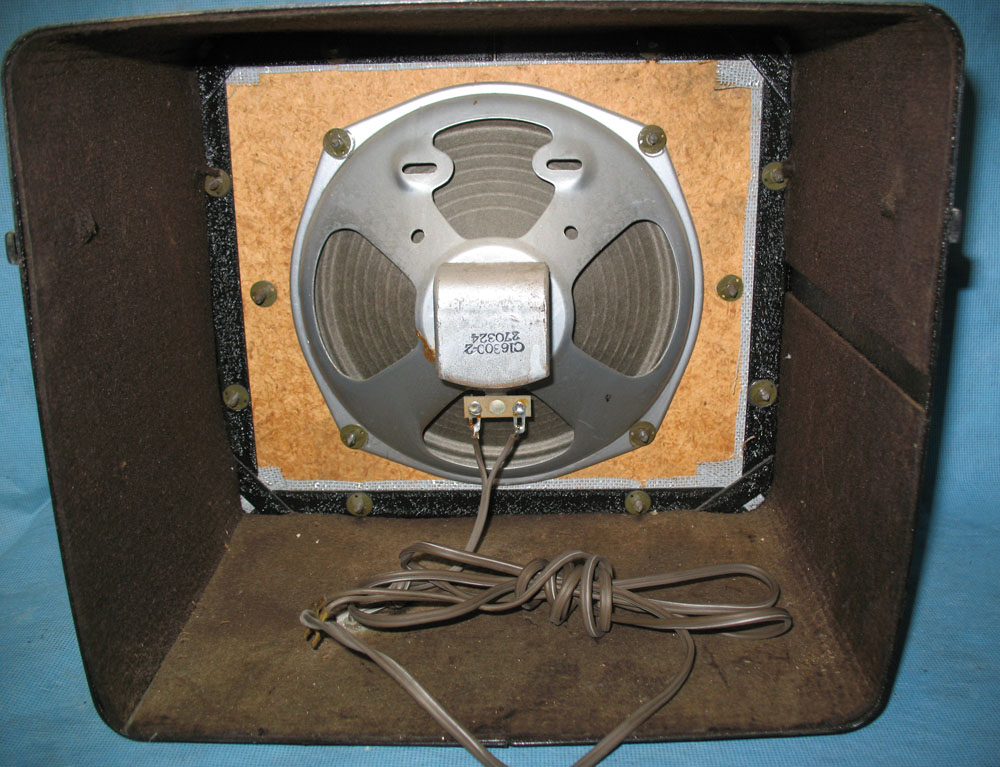

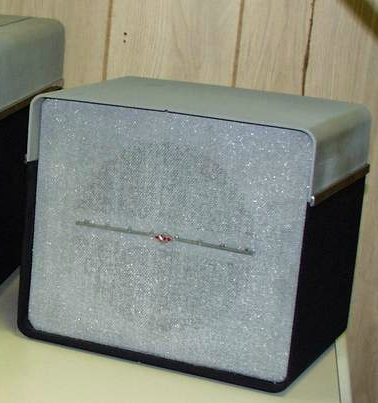

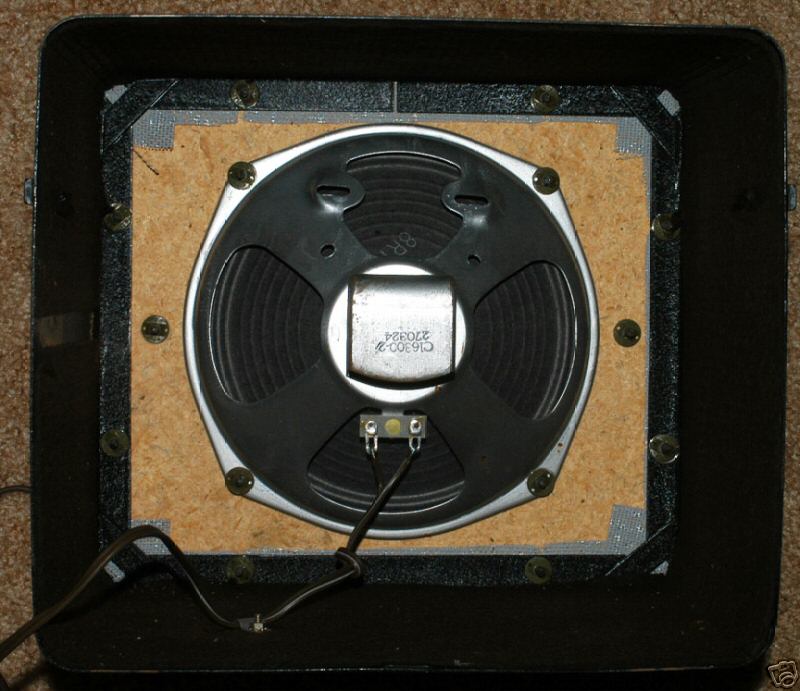

NTS-2 nat-nts2.jpg (86915 bytes) wrinkle darker gray 2-tone
chrome side trim
logo in center
matching converter cabinet avail.

this version appears in all the ads
I have found so far



 - NC-303, NC-400
NTS-2

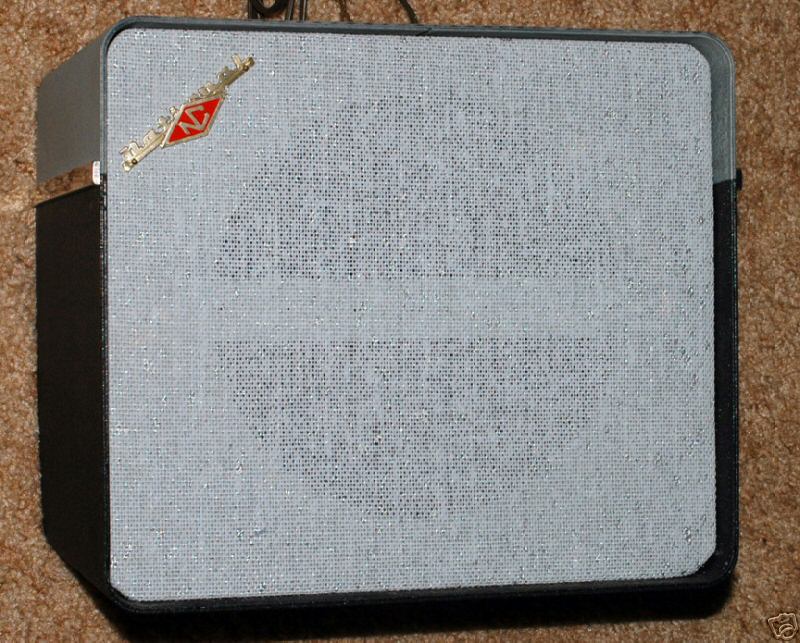

variant
wrinkle darker gray 2-tone
chrome side trim
National logo in corner
this is not a mod -
I have seen 2 of these, one NIB
 - NC-303, NC-400

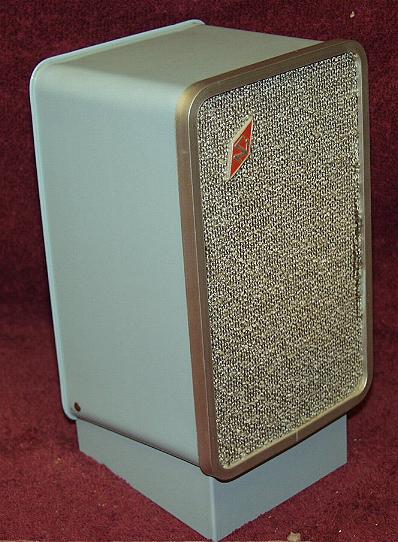

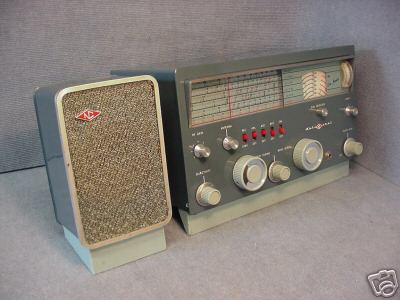

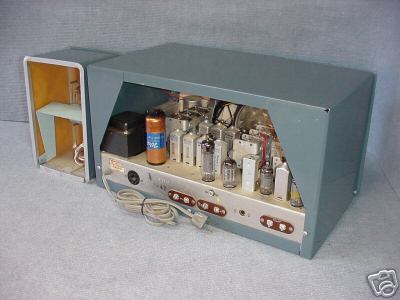

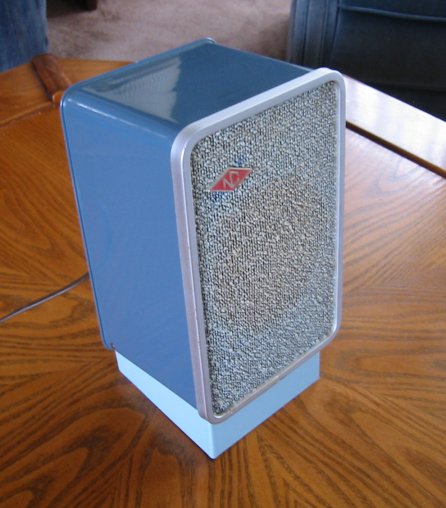

NTS-3 nat-NTS-3.jpg (46276 bytes) cosmic blue flip-foot oval  - NC-270

NTS-3B

tnx to WB2EZG
baby blue
flip-foot
oval NC-190, NC-155, NC-140

RME

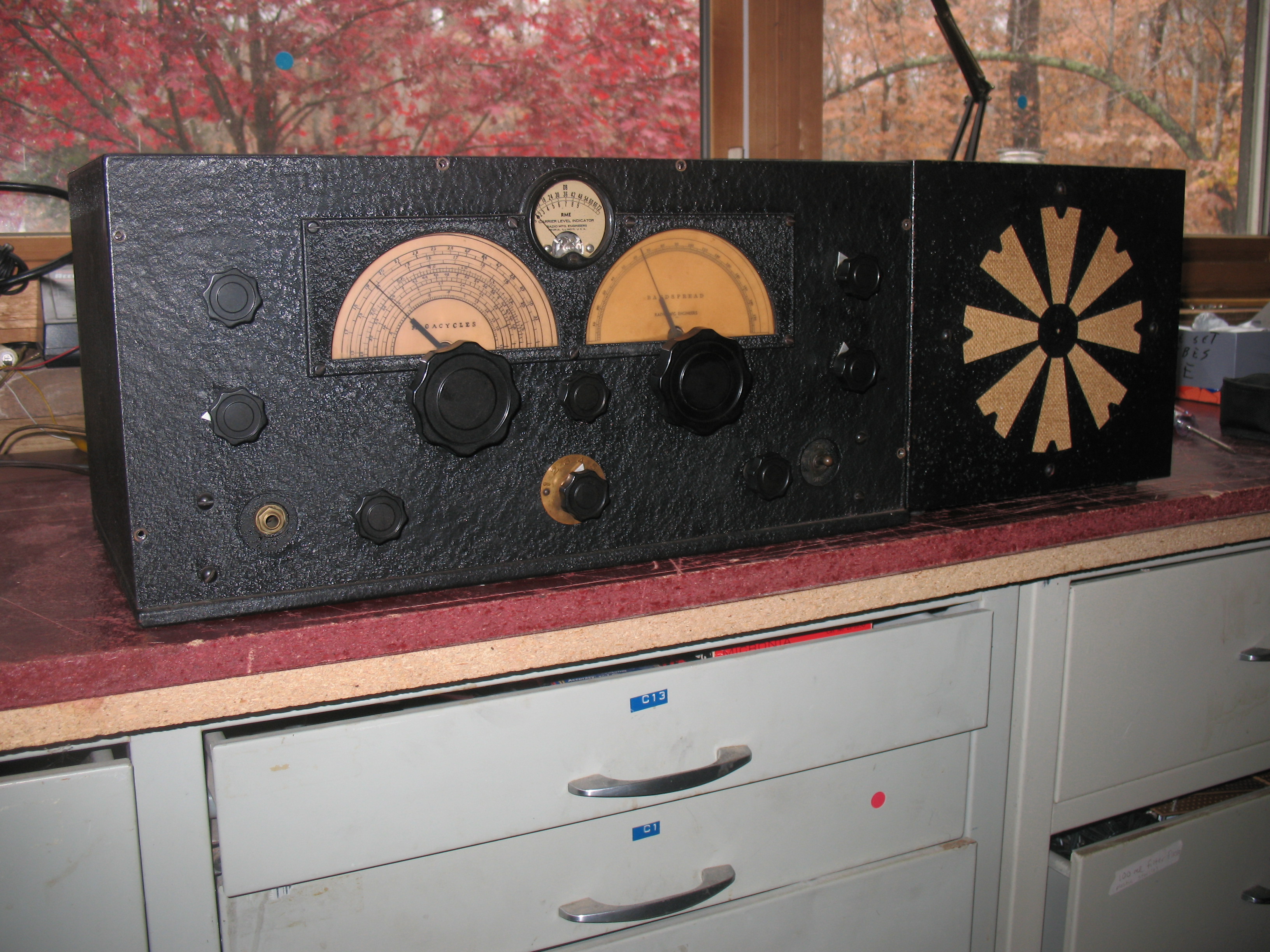

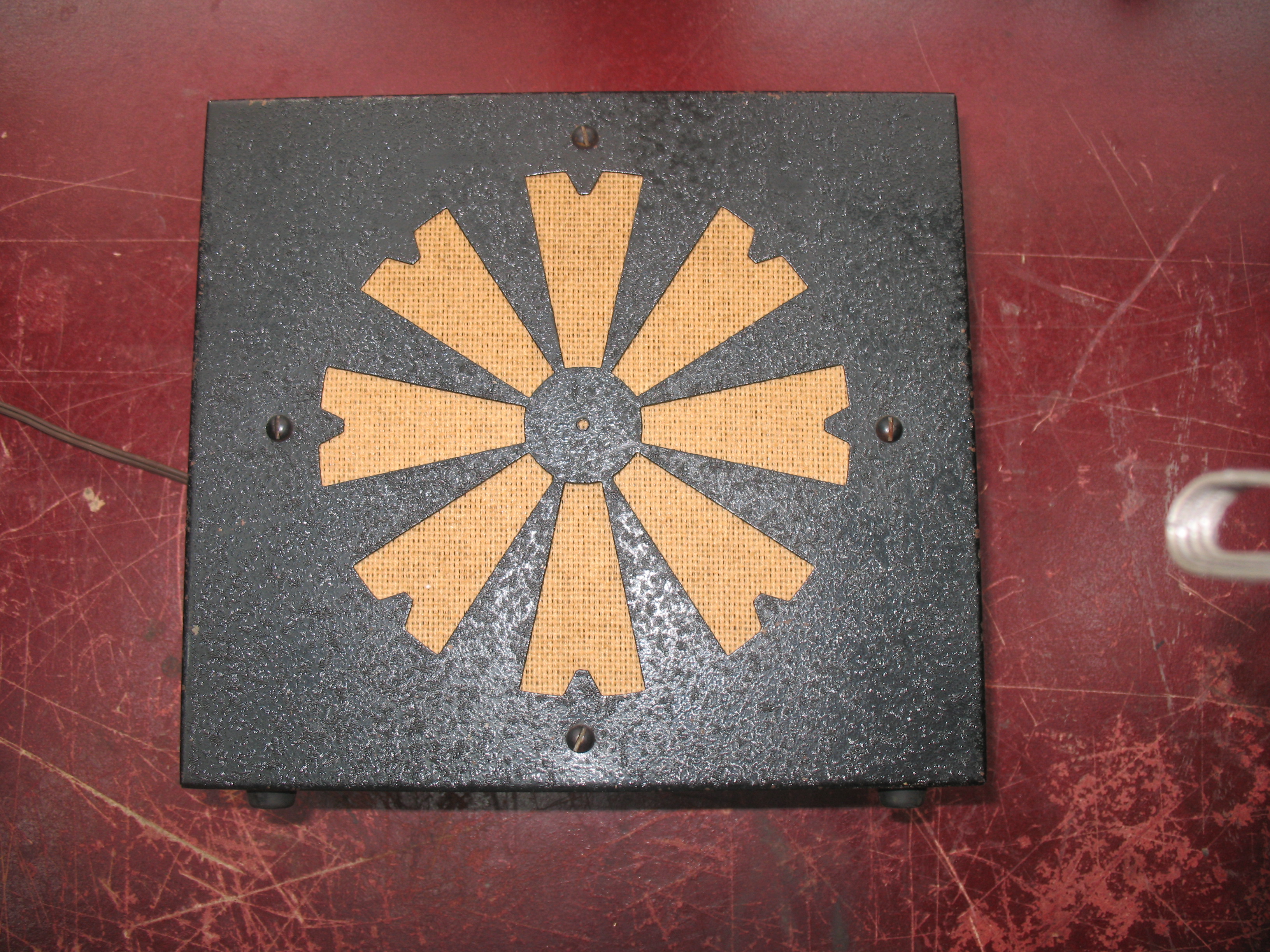

RME-? RME 003.jpg (2769510 bytes) RME 005.jpg (2097887 bytes) RME 006.jpg (2149022 bytes) RME 007.jpg (2795862 bytes) - -

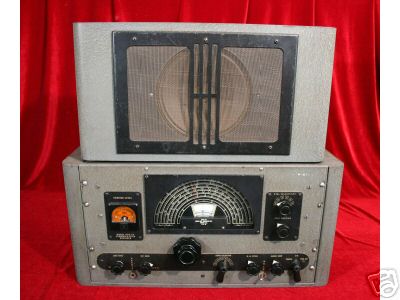

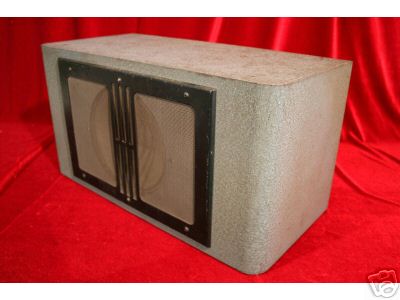

RME-45 rme45b-spkr-01.jpg (24588 bytes) rme45b-spkr-02.jpg (19269 bytes) rme45b-spkr-03.jpg (19618 bytes)  -   RME-45

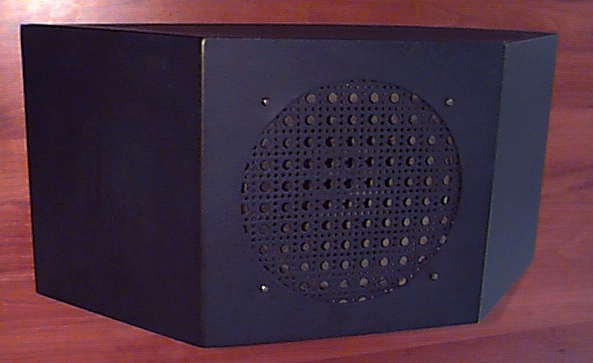

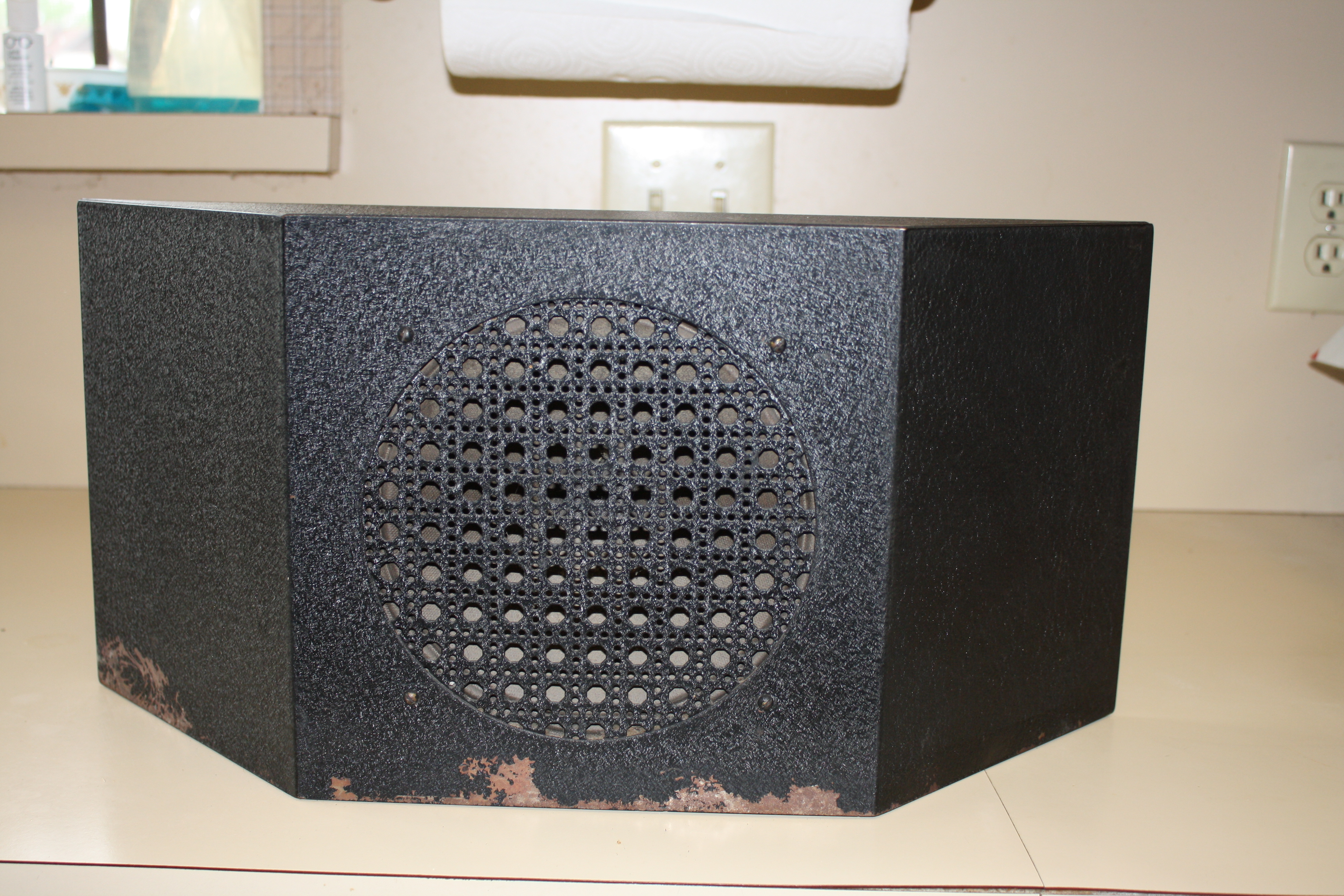

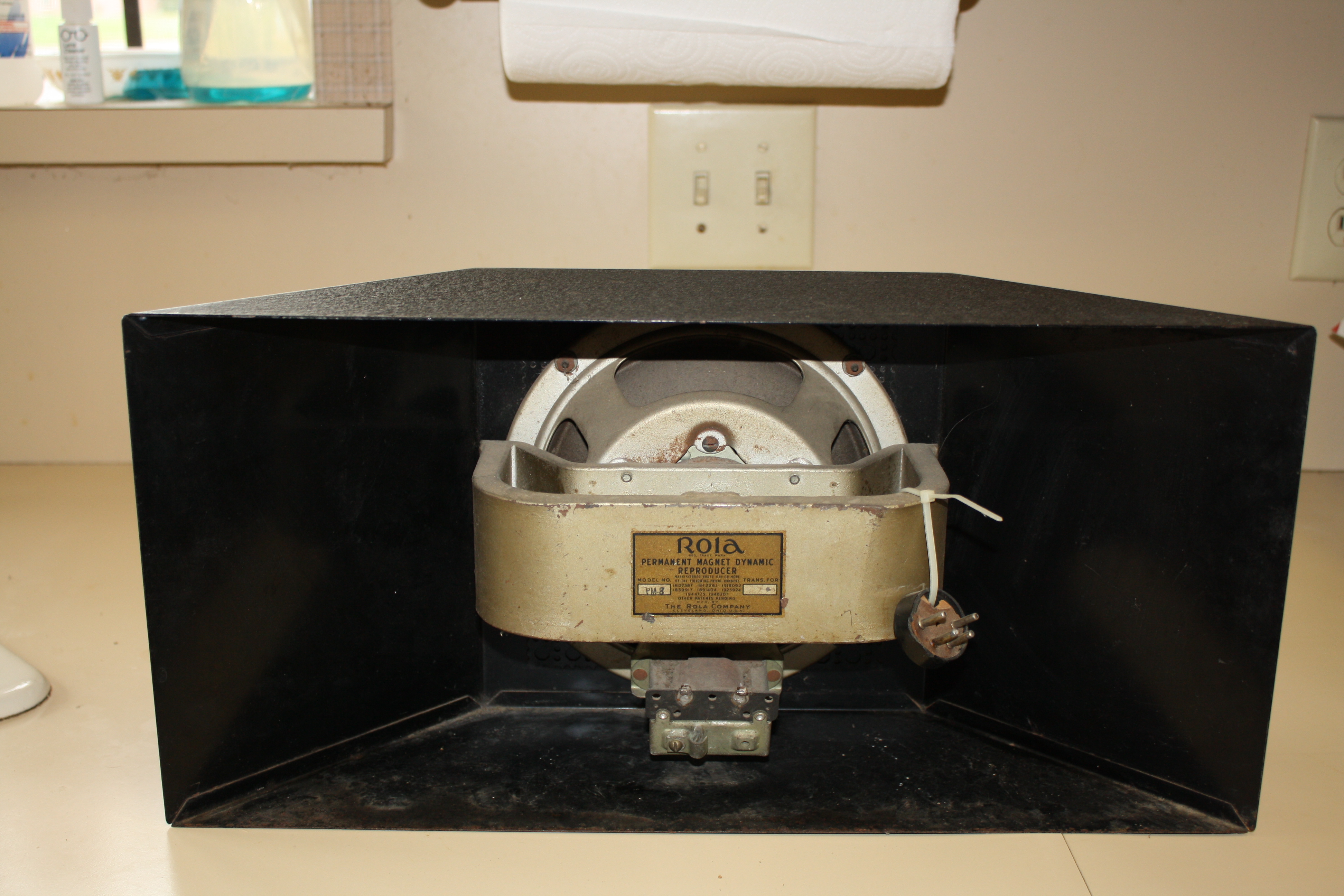

RME-69 rme_69.jpg (166485 bytes) rme69-spkr-21.jpg (4618449 bytes)  rme69-spkr-22.jpg (3020999 bytes) Photos thanks to Brian WA5UEK  - RME-69

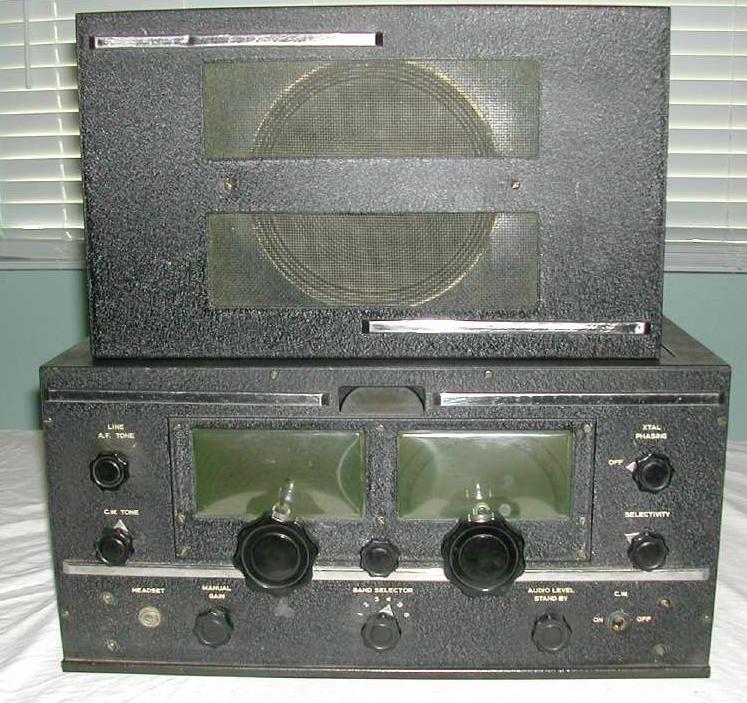

RME-70 rme-70-01.jpg (109195 bytes)  -  -  -  -

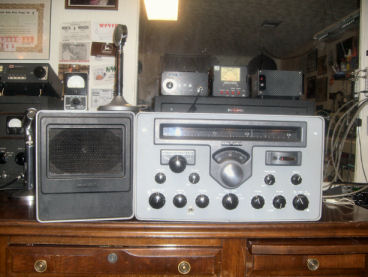

RME-6900 rme6900-6901.jpg (64925 bytes) - - - - -

Signal / One

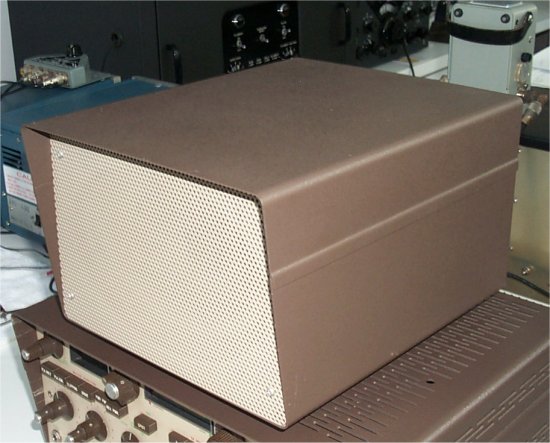

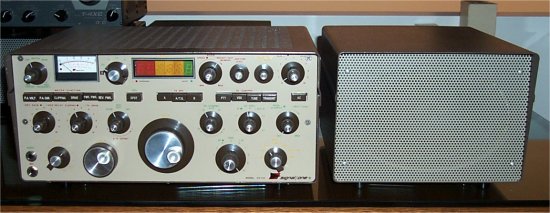

CX-11A cx11a-01.jpg (38159 bytes)
photo thanks to Bob W0YVA

Here are some questions I have:
